ZEISS ScanBox Series 4 RC
Automatsko utovarivanje i merenje delova

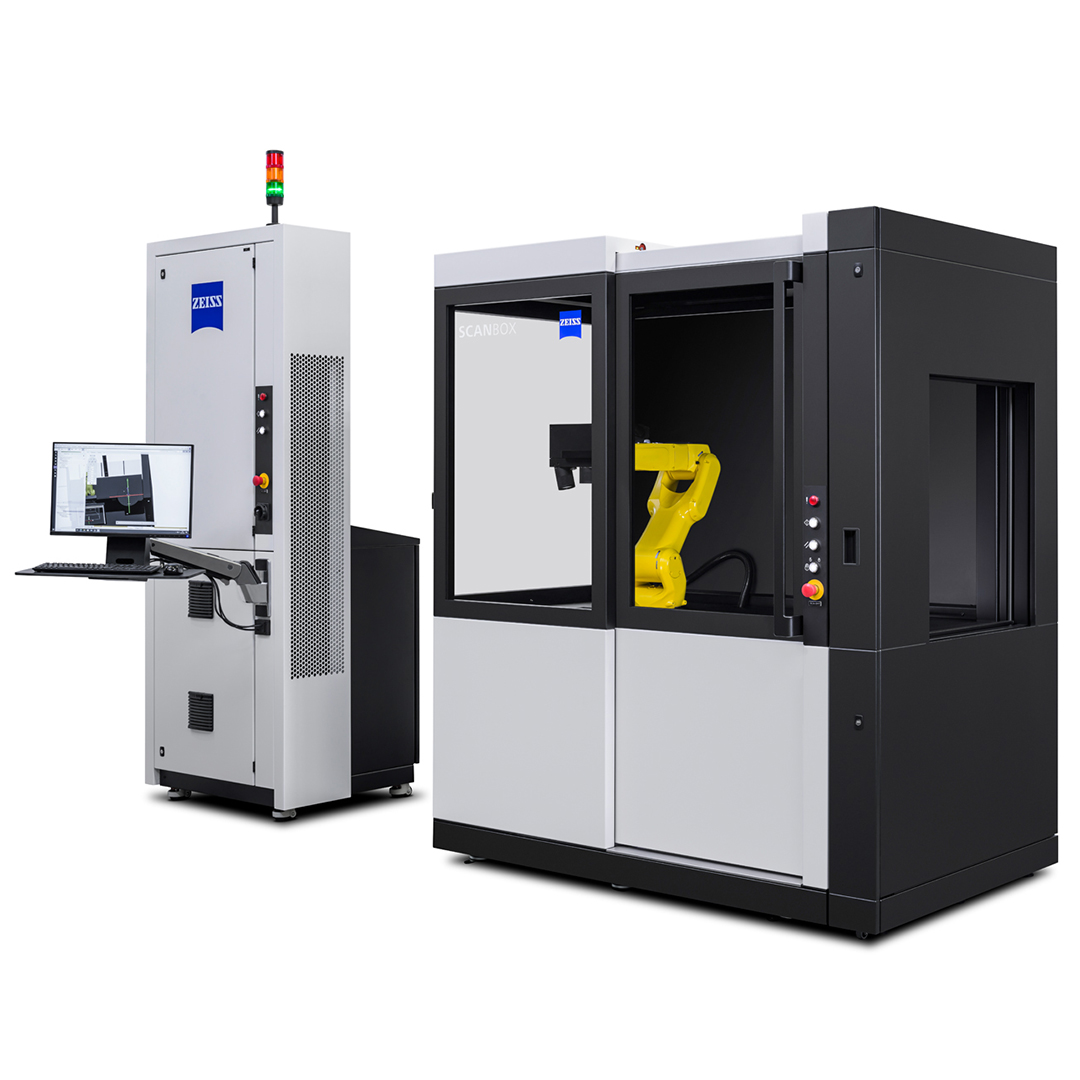

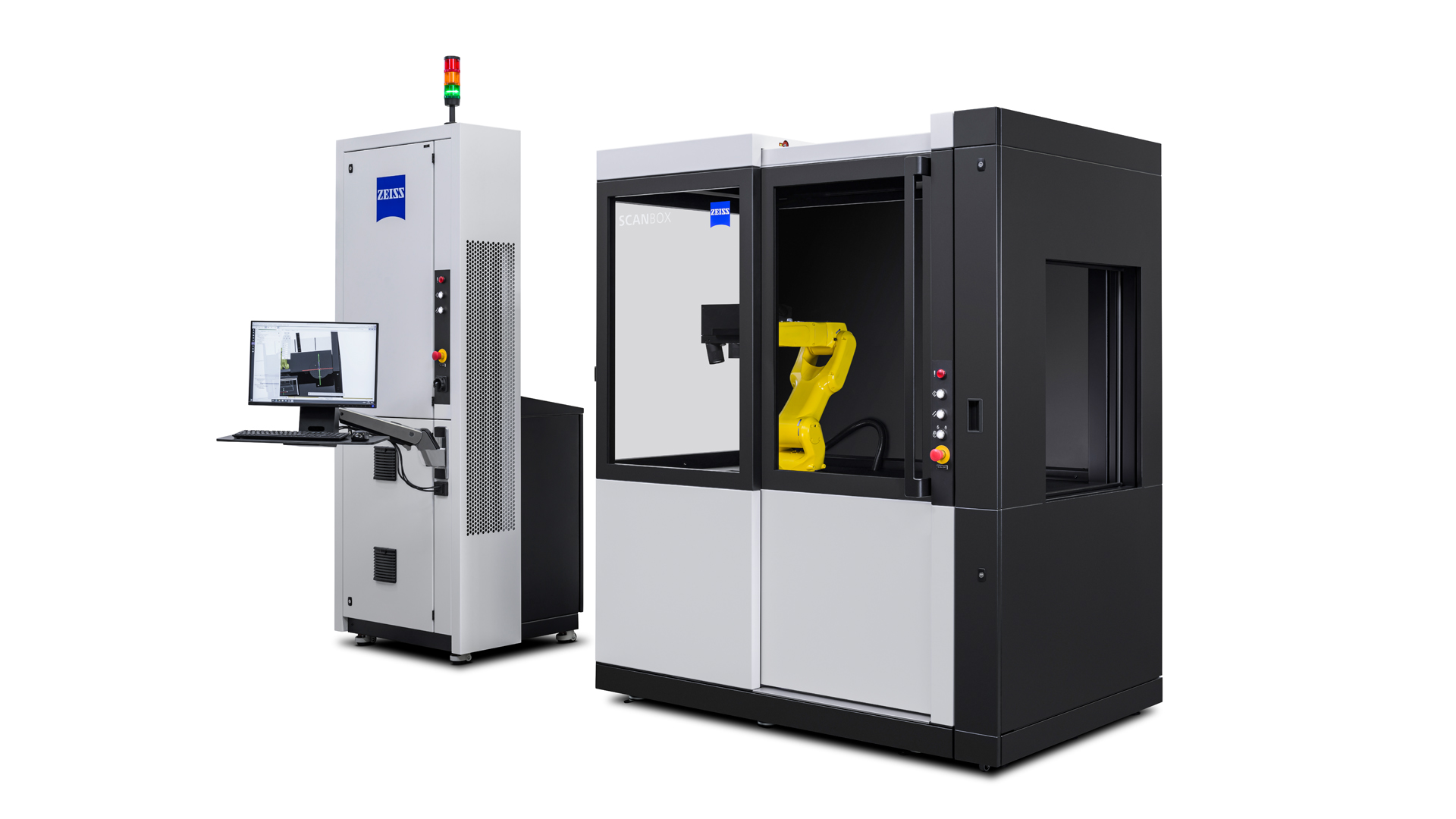

ZEISS ScanBox 4105 RC (sa daljinskim upravljanjem) je optička 3D merna mašina sa motorizovanim kliznim vratima. Delovi veličine do 500 mm mogu da se utovare u ZEISS ScanBox 4105 RC pomoću robota ili individualno prilagođenog sistema za punjenje, i pozicionirati na rotacioni sto. Eliminacija ručnog, pojedinačnog postavljanja delova značajno skraćuje vreme obrade i time povećava propusnost u kontroli kvaliteta.
Autonomna inspekcija delova
Autonomno funkcionisanje ZEISS ScanBox Series 4 RC povećava iskorišćenost mašine, ubrzava proces merenja i omogućava efikasnije raspoređivanje osoblja. Sistem je posebno razvijen za aplikacije koje zahtevaju visok stepen propusnosti i integracije.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.100.56.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.360.203.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.768.432.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1024.576.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg"})

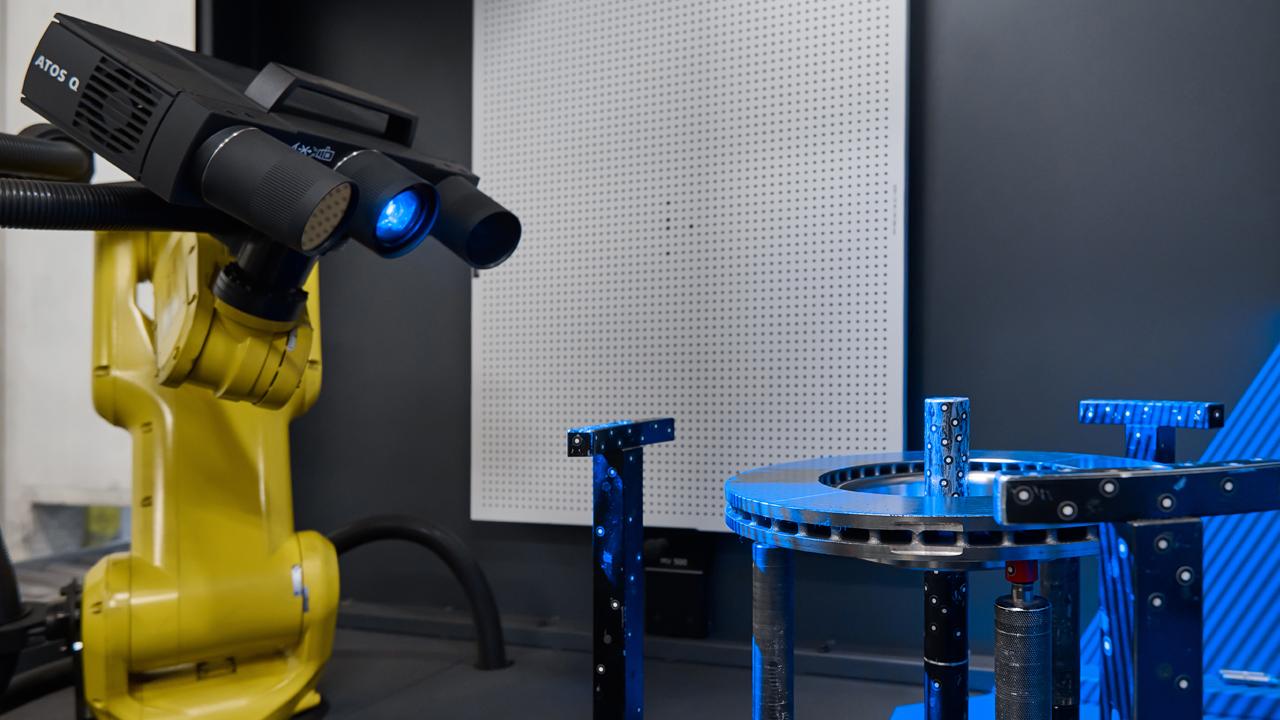

Visoka propusnost za serijski nadzor
Ponovljive i precizne sekvence merenja
Za efikasnu kontrolu kvaliteta serijskih proizvoda, neophodno je nadgledati proizvodne procese, smanjiti otpad i minimizirati skupe prepravke. Optička 3D merna mašina ZEISS ScanBox Serija 4 RC sa ATOS Q senzorom vam pomaže u sledećem: Punopojasni podaci iz serije delova mogu direktno da se uporede sa CAD modelom ili sa specifikacijama iz mernog plana. Izradite izveštaje o inspekciji direktno u proizvodnim pogonima i izvezite podatke direktno u sisteme za statističku kontrolu procesa.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_header_1920_1080.jpg"})
Automatizovana kontrola procesa
Brzo postavljanje i niski troškovi osoblja
Programirajte optičku 3D mernu mašinu preko ergonomske korisničke interfejsa integrisanog u kontrolni toranj. Sa ZEISS ScanBox 4105 RC, automatizovana inspekcija delova se pokreće putem startnog signala sa nadređenog kontrolera. ZEISS nudi komunikacione interfejse zasnovane na industrijskim komunikacionim protokolima (CC-Link, ProfiBus, ProfiNet, EtherCat, EtherNet/IP, OPC UA).
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original./zeiss-scanbox5-rc_2grid-maximal-machine.jpg"})

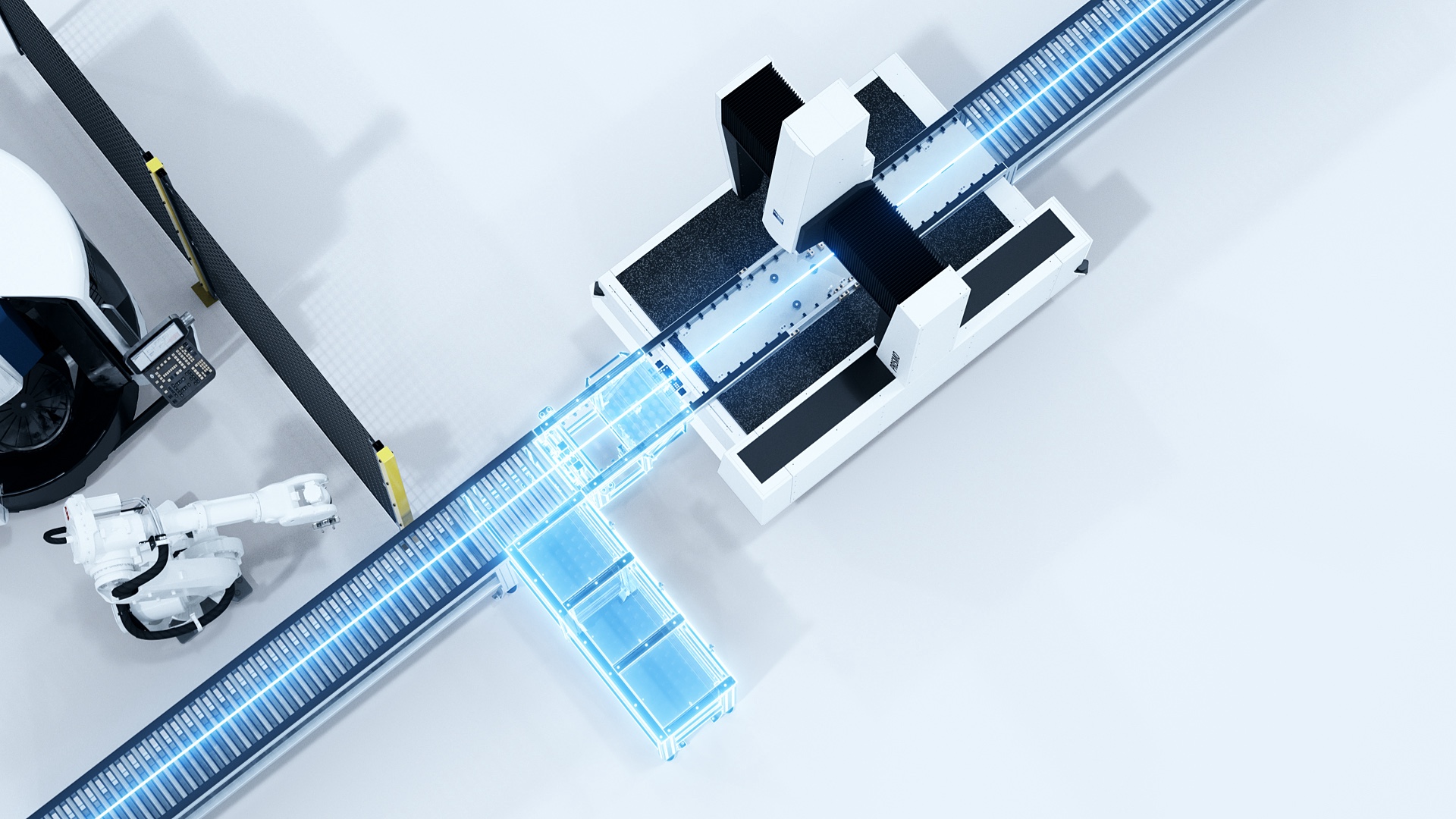

Maksimalna iskorišćenost mašine i optimizovani procesi
Individualno konfigurisani sistemi za utovar
Iskoristite pun potencijal ZEISS ScanBox Series 4 RC uz sisteme za punjenje i utovar kompanije ZEISS. Sa ZEISS Integration Series, možete automatizovati utovar delova i eliminisati zastoje. Protok delova i radno vreme su optimizovani.

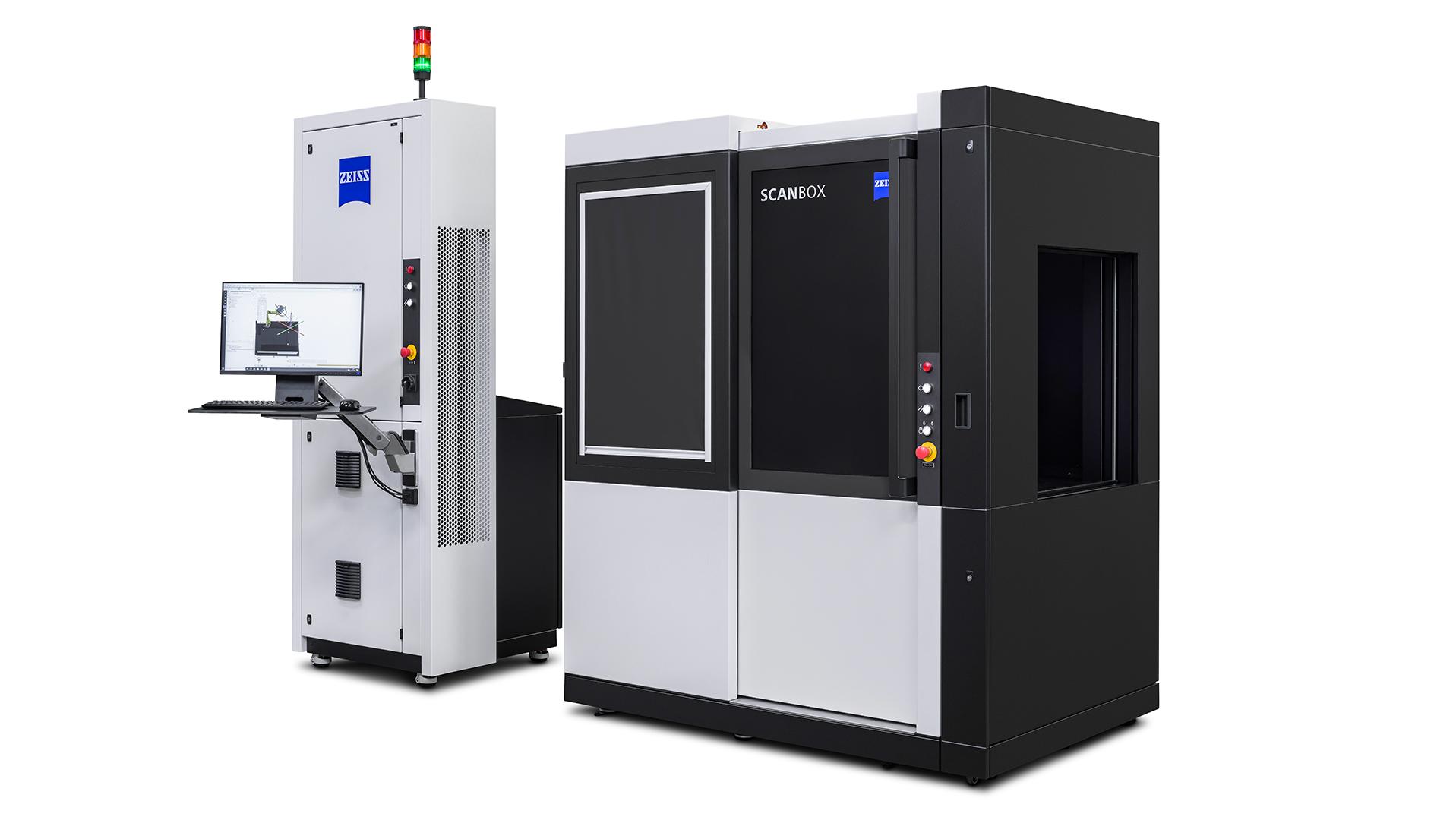

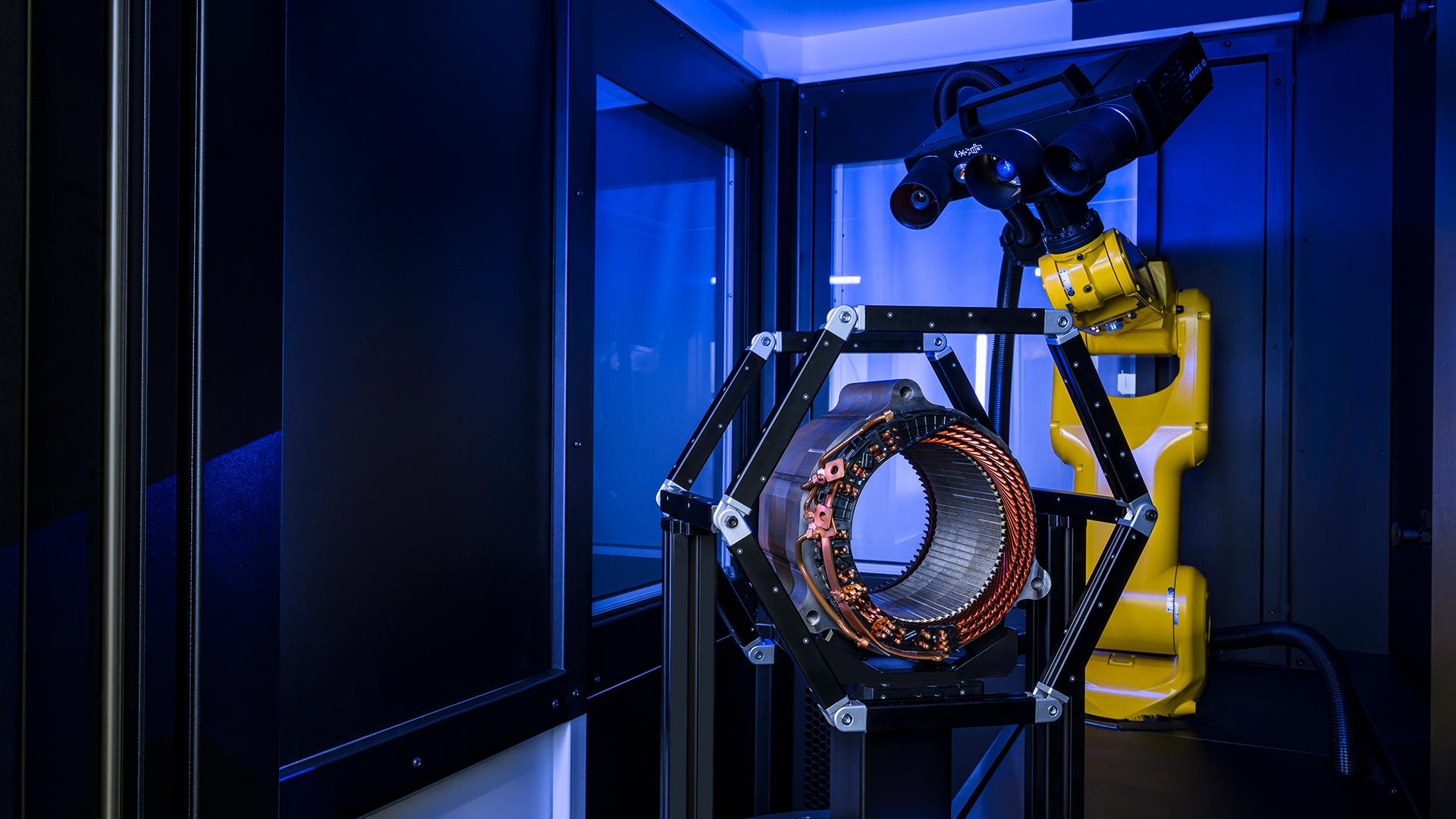

Potpuno automatizovano obezbeđenje kvaliteta statora i hairpin-a
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1919.1079.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg"})
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg"})

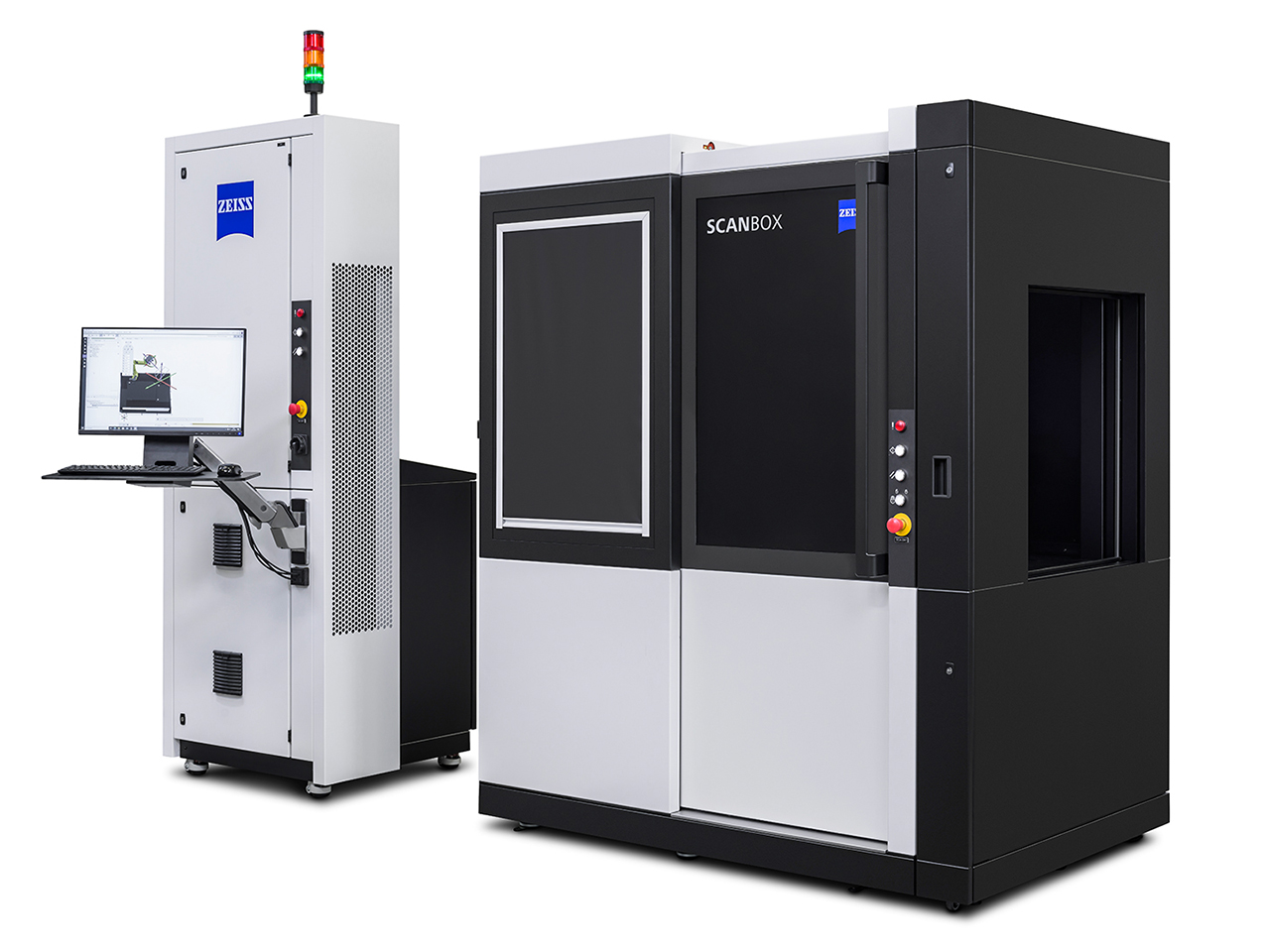

Dva modela za automatizovano utovarivanje i inspekciju delova
Koristite ZEISS ScanBox 4105 RC i ZEISS ScanBox 4105 RC za elektromotore za automatizovano obezbeđenje kvaliteta i serijsko praćenje direktno u proizvodnji. Zahvaljujući automatskom utovaru i istovaru, ponovljivim i preciznim merenjima, kao i niskim troškovima radne snage, možete efikasnije da rasporedite svoje osoblje.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.75.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.270.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.576.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.768.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.960.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg"})
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg"})
ZEISS INSPECT
Industrijski standard za 3D inspekciju i evaluaciju
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg"})
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg"})

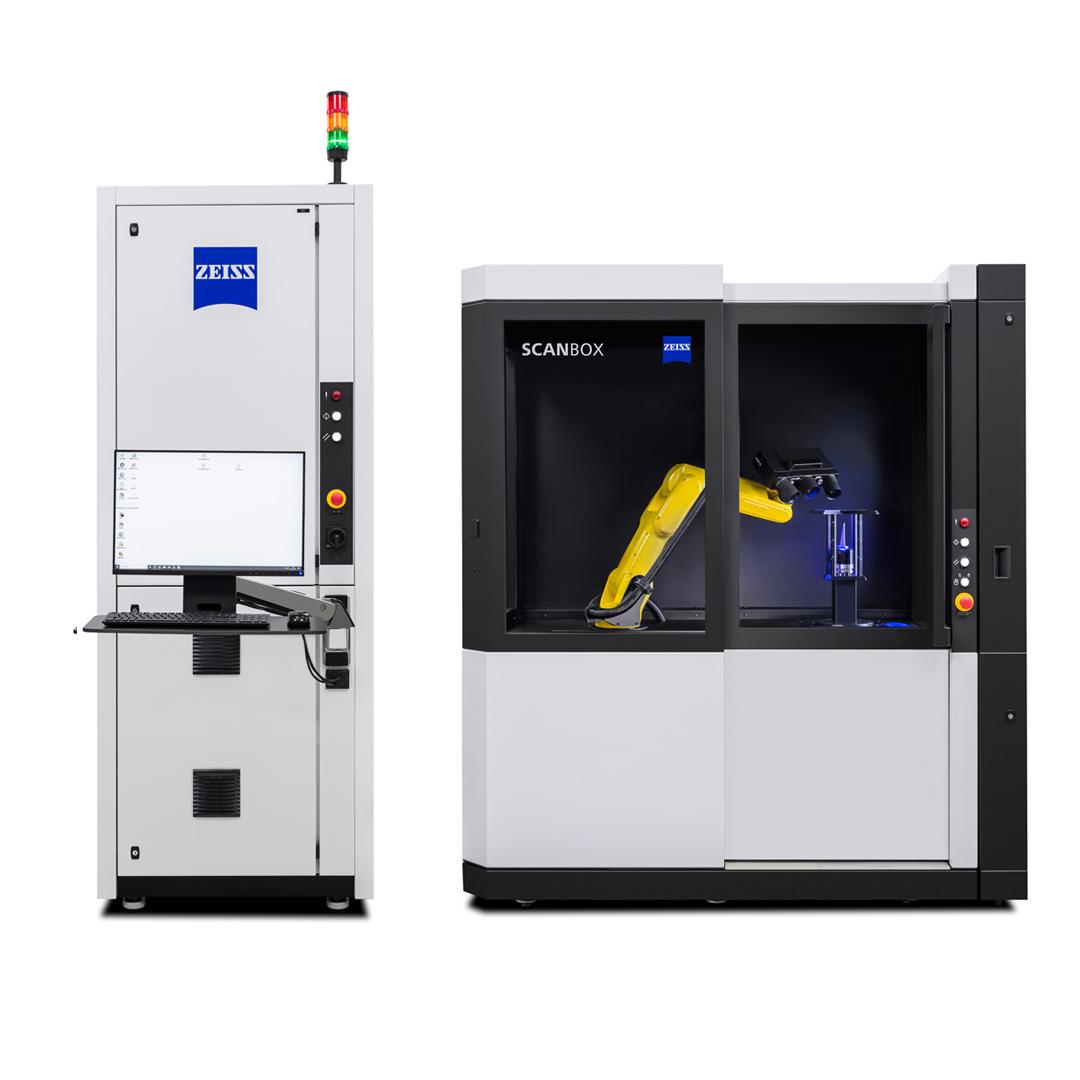

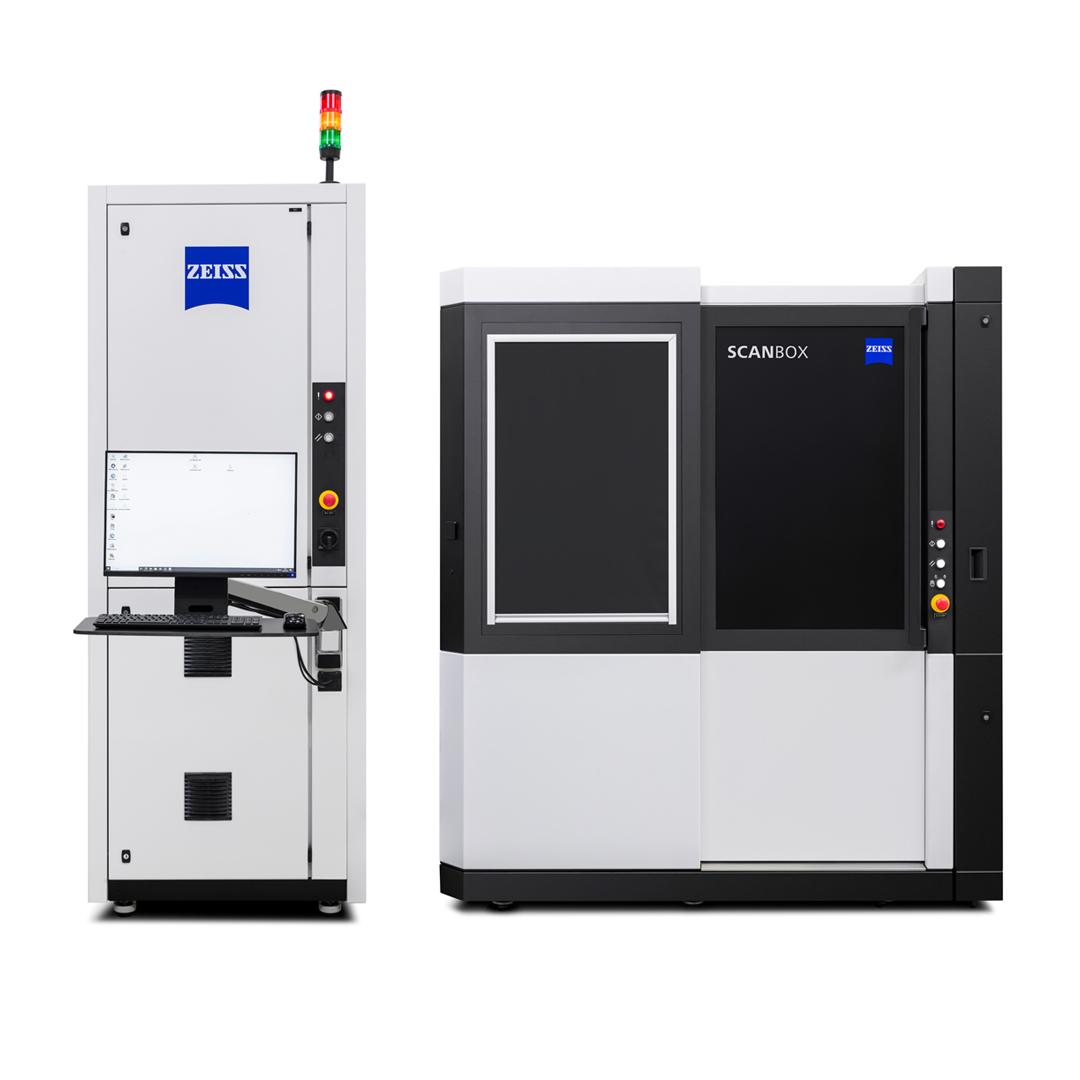

Tehnički podaci
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.100.100.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.360.360.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.768.768.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg"})
|
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.100.100.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.360.360.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.768.768.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg"})
|
|
|---|---|---|
|
Dimenzije |
1860 × 1200 × 2120 mm |
1860 × 1200 × 2120 mm |
|
Napajanje |
200–500 V (3-fazno, 16 A) |
200–500 V (3-fazno, 16 A) |
|
Maks. veličina dela |
Ø 500 mm |
Ø 500 mm |
|
Maks. težina dela |
100 kg |
100 kg |
|
Širina otvora |
680 mm |
680 mm |
|
Kompatibilnost senzora |
ATOS Q |
ATOS Q za elektromotore |
