Da li želite da brzo i efikasno kreirate CAD modele na osnovu poligonalnih mreža ili oblaka tačaka? Ili želite da smanjite broj iteracija pri optimizaciji alata u izradi kalupa i poboljšate CAD podatke za aditivnu proizvodnju?
Sve je to moguće uz ZEISS REVERSE ENGINEERING.
Na ovoj stranici ćete saznati kako da kreirate CAD modele komponenti koristeći ZEISS REVERSE ENGINEERING. Za korekciju CAD podataka alata i štampanih delova, kliknite ovde da biste saznali sve o opciji korekcije alata.

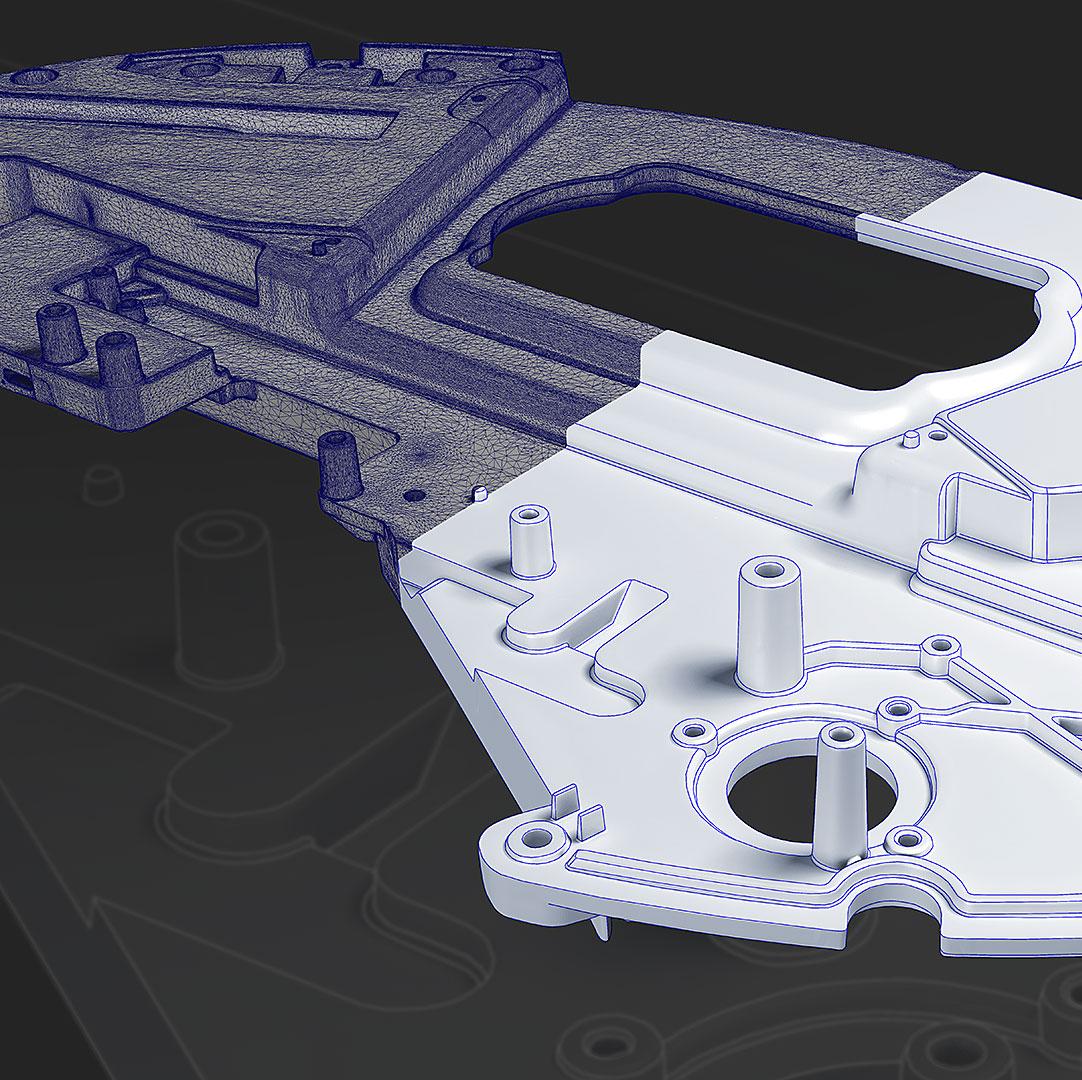

Skenirajte komponentu u ZEISS INSPECT ili bilo kom drugom softveru i uvezite svoje STL ili PLY podatke i ASCII formate u ZEISS REVERSE ENGINEERING. Nakon samo nekoliko vođenih koraka, dobija se izuzetno precizan CAD model, koji se može eksportovati u uobičajene formate kao što su IGES, STEP ili SAT.
Moćne funkcije za komponente sa standardnim geometrijskim oblicima: Izvezite svoje podatke u ZEISS REVERSE ENGINEERING i počnite da ih kreirate, kombinujete, izdvajate i prilagođavate. Softver vas navodi kroz kompletan proces sve dok se ne ostvari željeni precizan rezultat.
ZEISS REVERSE ENGINEERING pruža niz funkcija za postizanje visoko preciznih slobodnih površina. Na primer, primenite funkciju „Aproksimacija površine na osnovu tačaka“ tokom konverzije podataka i dozvolite softveru da vas vodi kroz proces korak po korak, sve do kreiranja željene komponente.
Softver poseduje specijalizovane inženjerske alate za precizno premodeliranje fluidnih, organskih oblika. Glavna prednost ove funkcije je: Samo nekoliko klikova deli vas od uvoza skeniranih podataka do kreiranja potpunog 3D modela, čak i kod sofisticiranih dizajna objekata. Pogledajte video da biste videli kako sistem funkcioniše.
Nova funkcija značajno ubrzava proces kreiranja CAD modela, naročito kod složenih geometrija. Princip funkcije crtanja: Skice se kreiraju u presečnim ravnima, koje se optimizuju definisanjem dimenzija i ograničenja. U poslednjem koraku, tela se formiraju iz skica putem jednostavnog klika mišem.
|
|
|
|
|---|---|---|
|
