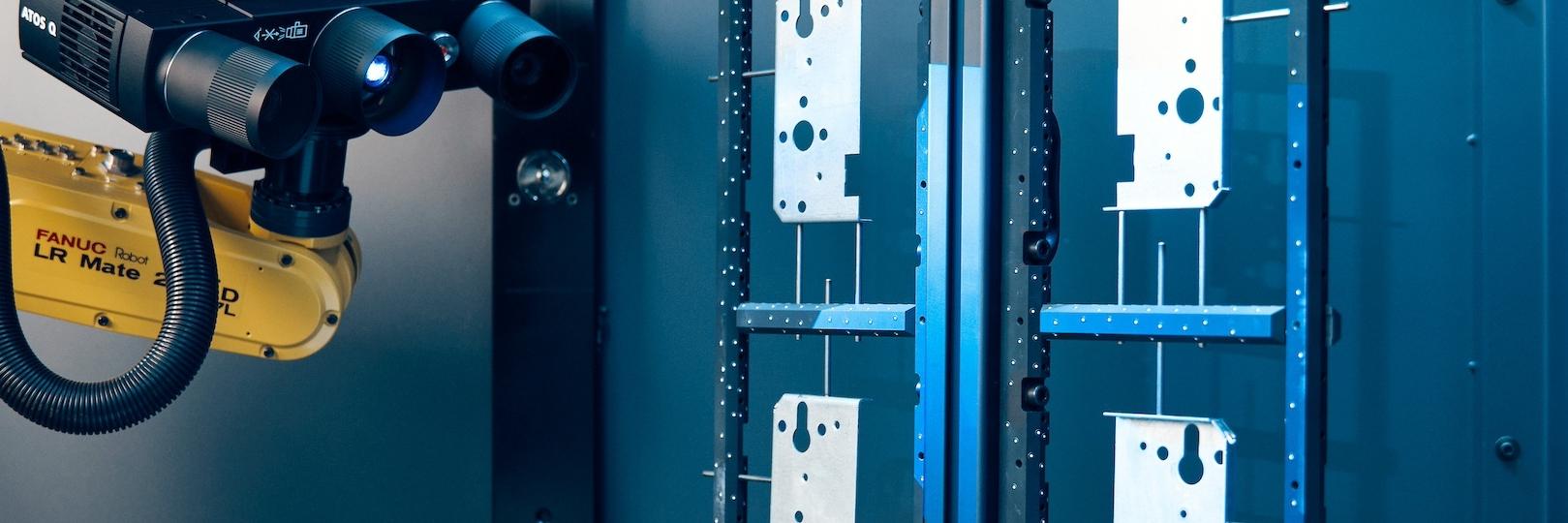

ATOS Q
3D skener za merenje objekata složenih geometrija, od malih do srednjih dimenzija, u ručnom, poluautomatskom ili potpuno automatskom režimu rada.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.100.33.300,396,1919,936.file/atos-q_2.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.360.120.300,396,1919,936.file/atos-q_2.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.768.256.300,396,1919,936.file/atos-q_2.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1024.341.300,396,1919,936.file/atos-q_2.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1280.427.300,396,1919,936.file/atos-q_2.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1440.480.300,396,1919,936.file/atos-q_2.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/atos-q_2.jpg/_jcr_content/renditions/original.image_file.1619.540.300,396,1919,936.file/atos-q_2.jpg"})
ATOS Q
Kontrola kvaliteta
Kontrola kvaliteta
delova od lima
Izazovi
Uz rastuće zahteve za funkcionalnošću i bezbednošću, potražnja za visokokvalitetnim delovima od lima neprestano raste. Pored toga, sposobnost bržeg razvoja i plasiranja proizvoda na tržište se smatra konkurentskom prednošću. Stoga je potreban brz i efikasan sistem merenja koji proverava oblike i kvalitet proizvoda.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.100.50.0,203,1920,1163.file/tuerschloss2.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.360.180.0,203,1920,1163.file/tuerschloss2.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.768.384.0,203,1920,1163.file/tuerschloss2.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1024.512.0,203,1920,1163.file/tuerschloss2.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1280.640.0,203,1920,1163.file/tuerschloss2.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1440.720.0,203,1920,1163.file/tuerschloss2.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-q/tuerschloss2.jpg/_jcr_content/renditions/original.image_file.1920.960.0,203,1920,1163.file/tuerschloss2.jpg"})
Rešenje

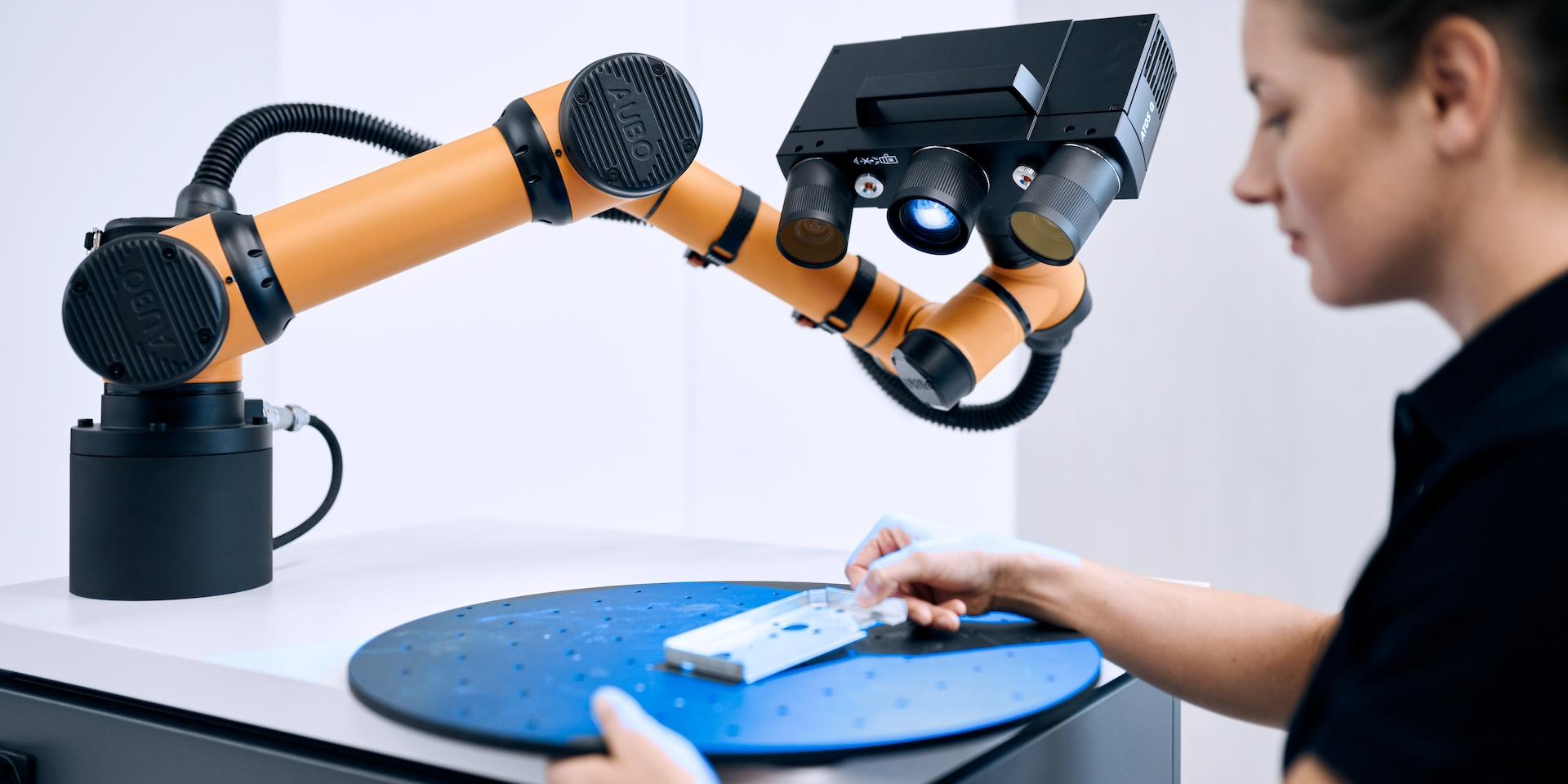

Automatizovano rešenje okompanije ZEISS, ATOS ScanBox, omogućava brzu i efikasnu inspekciju delova od lima. Njegov bezkontaktni merni sistem može da se koristi u procesu oblikovanja lima kako bi se garantovala kontinuirana kontrola kvaliteta, od probnog alata i prve inspekcije dela do kontrole proizvodnje tokom serijske proizvodnje i analize sklapanja. ScanBox se isporučuje sa virtuelnom mernom sobom (VMR) u ZEISS INSPECT softveru za jednostavno planiranje i kontrolu merenja. Nakon postavljanja u VMR, ScanBox automatski pokreće program merenja i inspekcije. Postoji mogućnost preciznog merenja čak reflektujućih limenih delovova i njihovih oštrih karakteristika, kao što su lasersko sečenje i rasporedi rupa. Rezultati merenja daju trenutnu povratnu informaciju o kvalitetu delova. Korisnici mogu da vide ukupnu deformaciju oblika i pregledati odstupanje sečenja. Parametarski softver ZEISS INSPECT podržava čak i skeniranje više delova i analizu trendova tokom proizvodnje.
