ZEISS MMZ T
Portalna KMM sa velikim merenim opsegom
Sa merenim opsegom do 14,8 m³, ZEISS MMZ T nudi najveći merni opseg među portalnim mernim mašinama. Na primer: omogućava vrlo precizno merenje velikih zupčanika direktno u proizvodnom pogonu.
![ZEISS MMZ T]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.100.100.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.360.360.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.768.768.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1280.1280.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1440.1440.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1920.1920.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg"} "ZEISS MMZ T")

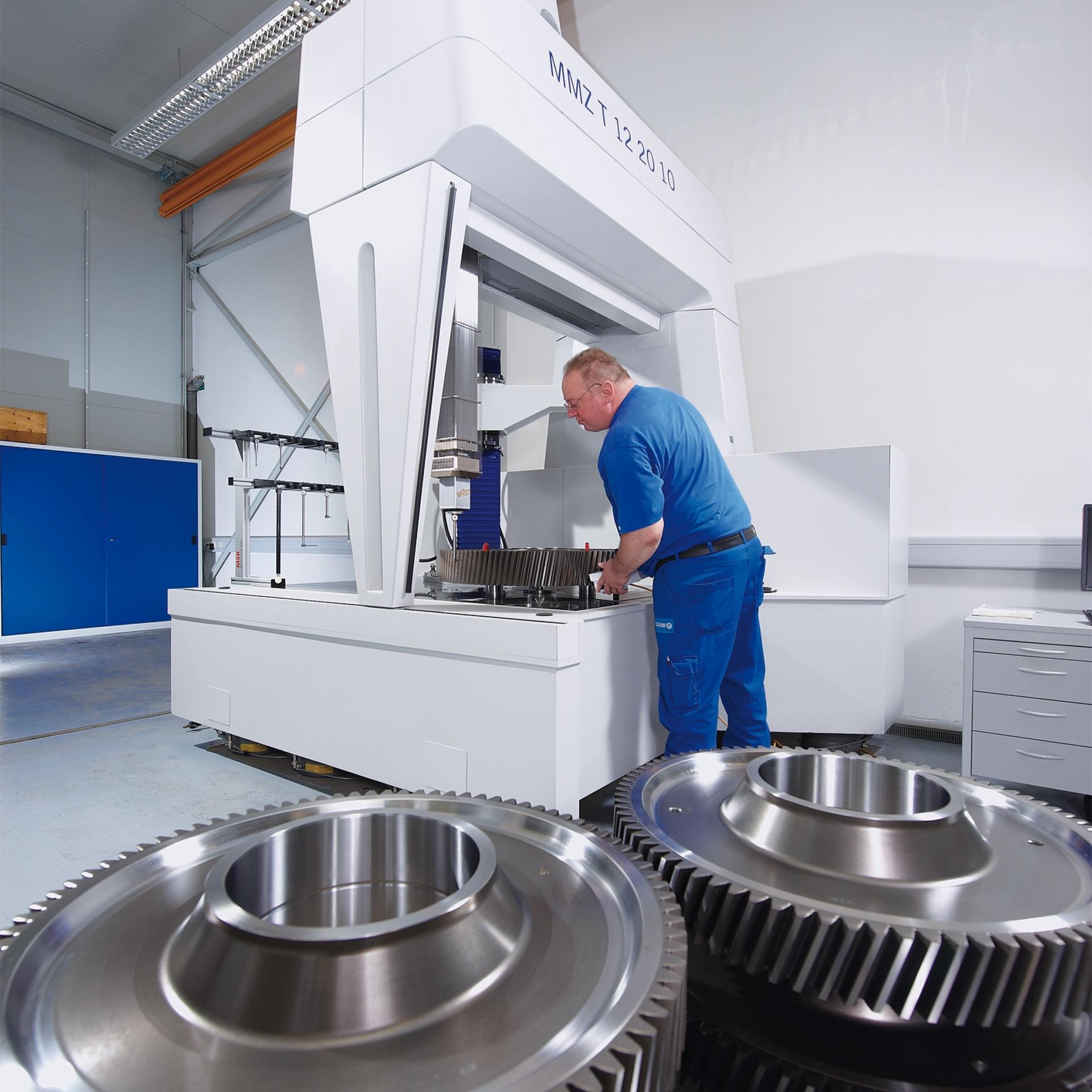

ZEISS MMZ T koordinatna merna mašina za merenje cilindričnih zupčanika sa zakošenim zubima
![ZEISS MMZ T]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.100.100.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.360.360.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.768.768.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1280.1280.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1440.1440.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1920.1920.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg"} "ZEISS MMZ T")
ZEISS MMZ T koordinatna merna mašina opremljena je motorizovanim konjićem.
Tehnički podaci za ZEISS MMZ T
|
|
|
|
|---|---|---|
|
Greška u merenju dužine |
MPE_E150 |
od 2,4 + L/400 μm |
|
Greška pri merenju jednom sondom |
MPE_PFTU |
od 2,0 μ |
|
Greška merenja skeniranjem |
MPE_THP/tau |
od 2,8 μ/62 s |
|
Greška u merenju oblika |
MPE RONt |
od 2,0 μm |
