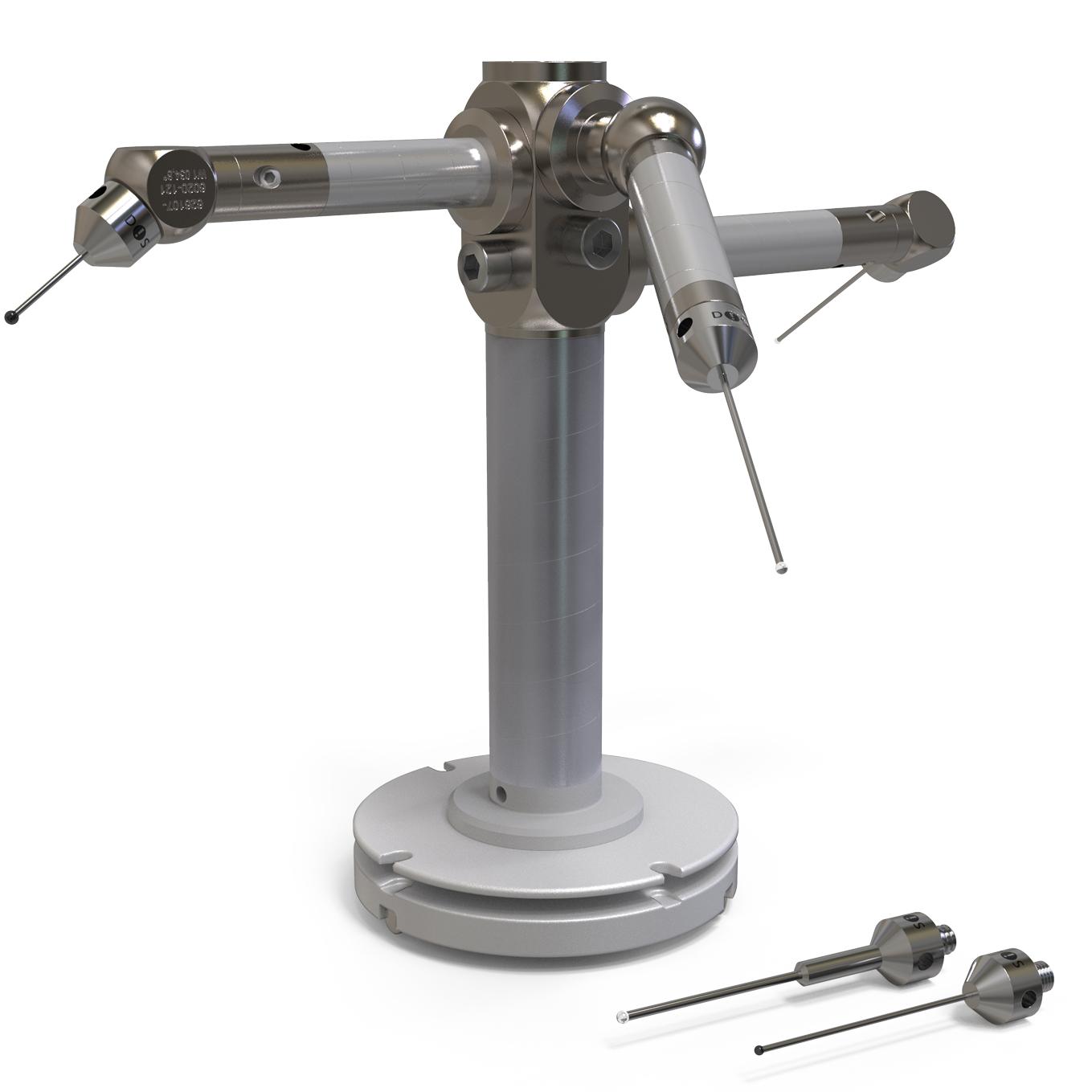

Diamond!Scan® od ZEISS
Napravljeno od najtvrđeg materijala na svetu
Naši ZEISS Diamond!Scan merni vrhovi su posebno razvijeni za merenja na ultra-tvrdim keramičkim površinama ili izuzetno mekim aluminijumskim legurama. Sastavljeni su od dijamanta, koji je najtvrđi materijal na svetu.
Karakteristike
ZEISS Diamond!Scan
Naš asortiman proizvoda
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.100.67.1,0,1920,1279.file/solid-diamond-scan.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.360.240.1,0,1920,1279.file/solid-diamond-scan.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.768.512.1,0,1920,1279.file/solid-diamond-scan.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1024.683.1,0,1920,1279.file/solid-diamond-scan.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1280.853.1,0,1920,1279.file/solid-diamond-scan.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1440.960.1,0,1920,1279.file/solid-diamond-scan.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1919.1279.1,0,1920,1279.file/solid-diamond-scan.jpg"})

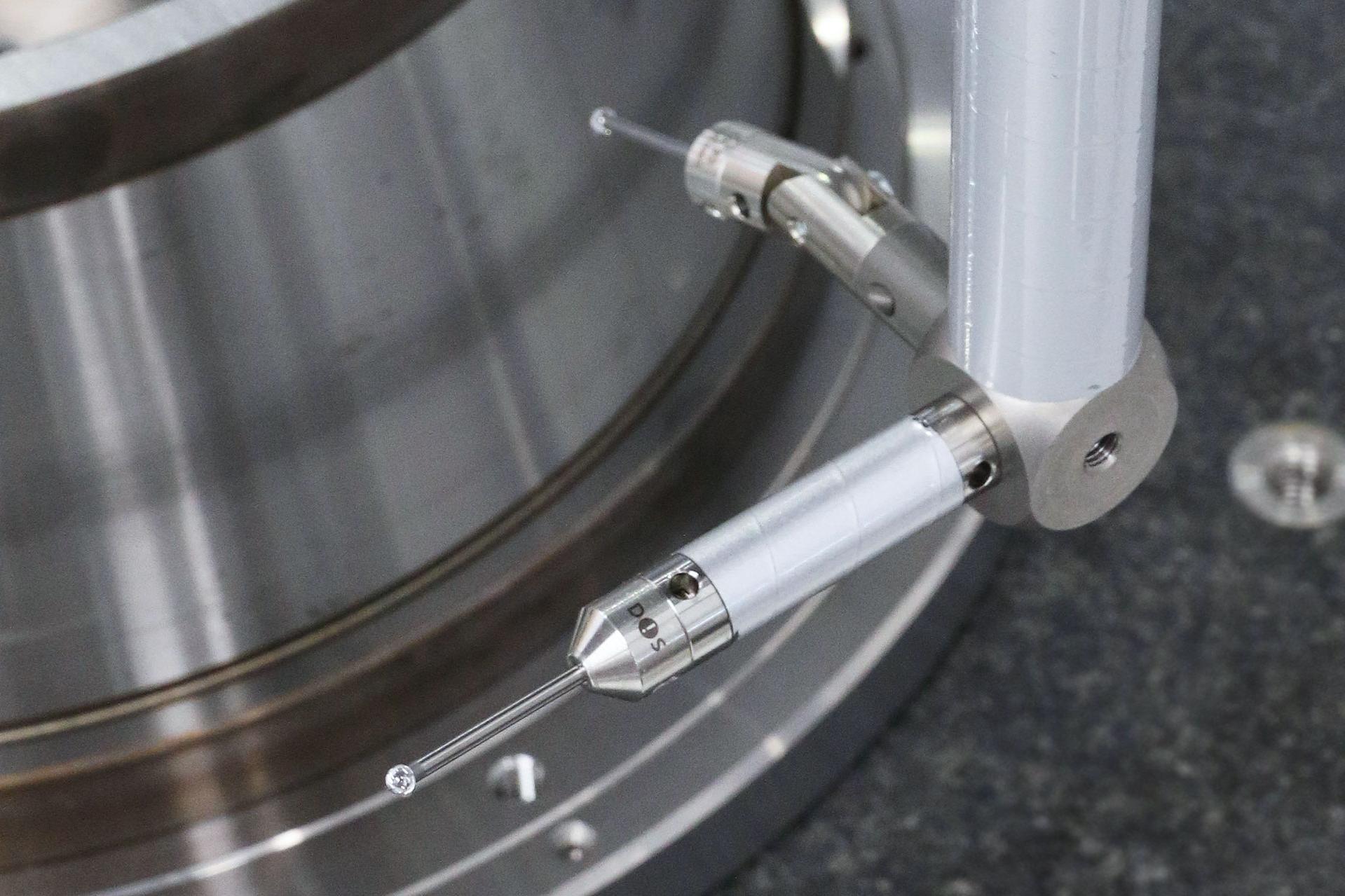

Pun dijamant
Za najteže merne zadatke
Naš ZEISS Diamond!Scan je merni vrh sa sferom izrađenom od punog dijamanta. Izuzetno je izdržljiv i ne troši se čak ni kada je izložen tvrdim materijalima. Možete se osloniti na čvrsti dijamantski merni vrh čak i pri merenja tačke sa snažno koncentrisanim opterećenjem. Ukratko: snažno preporučujemo naše merne vrhove od punog dijamanta za najzahtevnije merne zadatke. Dostupni su u prečnicima DK 1, DK 2 i DK 3.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/diamond-coated-stylus.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/diamond-coated-stylus.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/diamond-coated-stylus.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/diamond-coated-stylus.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/diamond-coated-stylus.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/diamond-coated-stylus.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original./diamond-coated-stylus.jpg"})

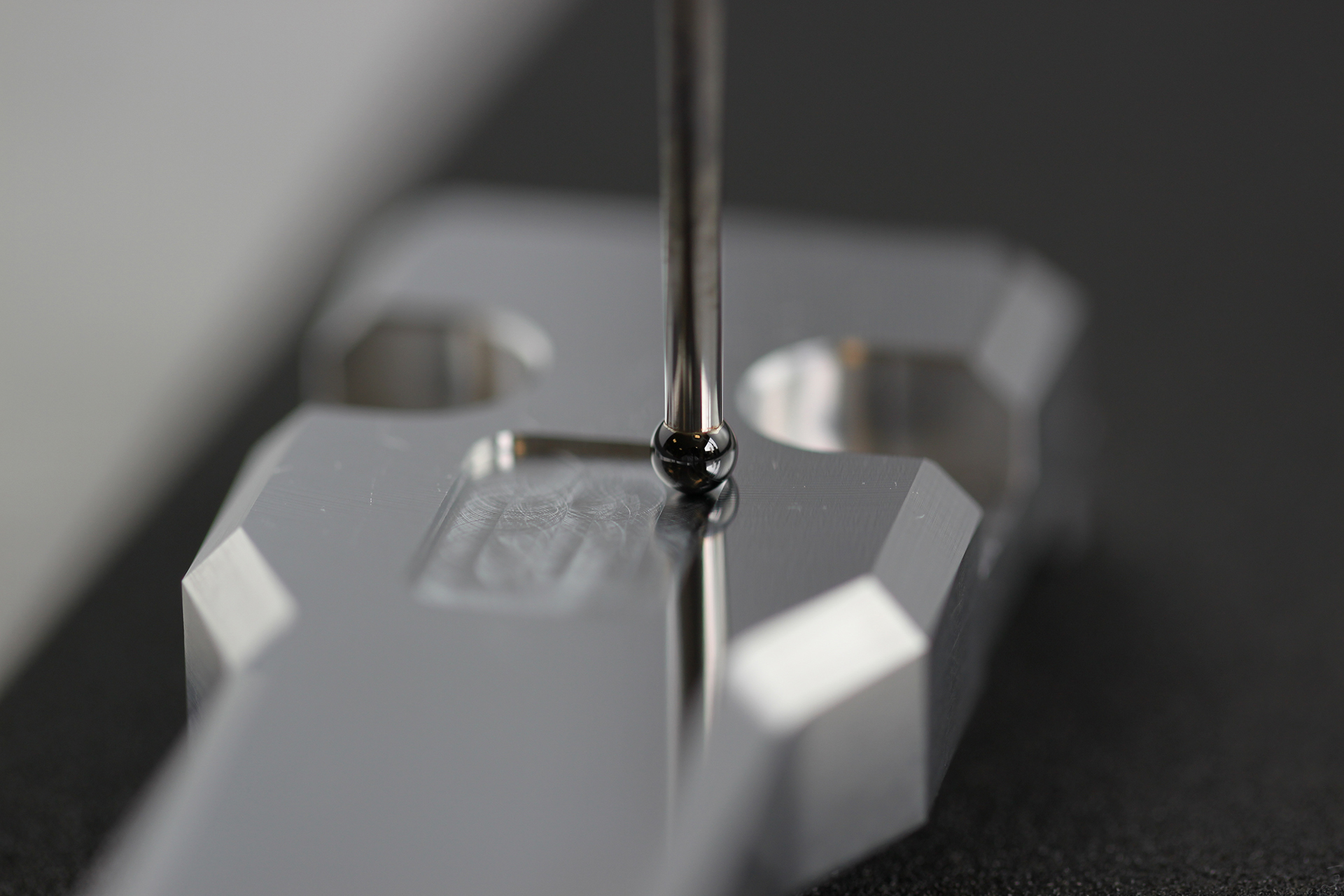

Merni vrhovi obloženi dijamantom
Merenje bez nakupljanja materijala
Merni vrhovi obloženi dijamantom se sastoje od keramičke sfere obložene dijamantom. Oni su posebno pogodni za skeniranje mekih materijala. Na taj način se sprečava taloženje materijala sa radnog komada na mernoj sferi. Dodatna prednost je što obloženi merni vrhovi imaju veću okruglost, ispod 150 nm, čime omogućavaju višu preciznost po znatno povoljnijoj ceni. Ovi merni vrhovi su dostupni u prečnicima DK 1.05; DK 2.05; DK 3.05; DK 5.05 ili DK 8.05.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/monolithic-stylus.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/monolithic-stylus.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/monolithic-stylus.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/monolithic-stylus.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/monolithic-stylus.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/monolithic-stylus.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original./monolithic-stylus.jpg"})

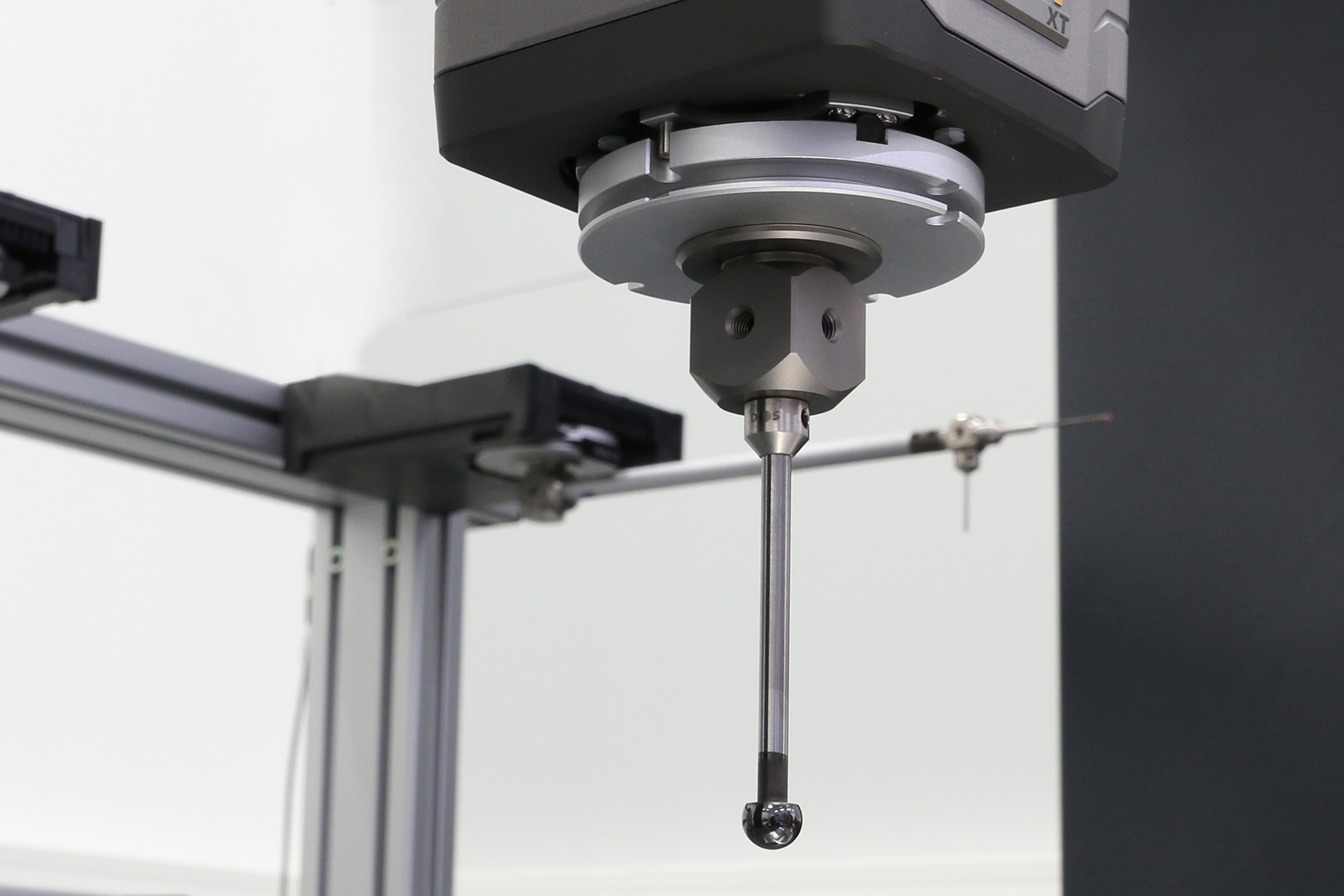

Monolitni merni vrhovi
Bešavni merni vrhovi sa dijamantskim premazom
ZEISS Diamond!Scan mono je monolitni merni vrh sa dijamantskim premazom. To znači da su sfera i merni vrhov proizvedeni iz jednog dela. Ovo rešenje ima nekoliko prednosti: Mogu se proizvesti u bilo kom prečniku i sa svakom tehnički izvodljivom dužinom. Pored toga, nema rizika od otkidanja sfere, jer je merni vrh izrađen iz „jednog komada“.
Merni vrh od punog dijamanta ili merni vrh obložen dijamantom?
Izbor zavisi od vašeg individualnog zadatka merenja. Svaki od mernih vrhova ima svoje prednosti.
