Uređivanje mreže u ZEISS INSPECT
Kvalitet čak i pre inspekcijeSa ZEISS INSPECT možete optimizovati poligonske mreže kroz procese kao što su smanjivanje šuma, razređivanje i fino podešavanje. Takođe možete popunjavati praznine u mreži. Uređivanje mreže se prilagođava zakrivljenosti površine i zasniva se na precizno definisanim tolerancijama.
![Vizualizacija poligonskih mreža generisanih iz oblaka tačaka]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_polygon-meshes-from-point-clouds.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_polygon-meshes-from-point-clouds.jpg"} "Generisanje poligonskih mreža iz oblaka tačaka")
Kreirajte poligonalne mreže iz oblaka tačaka

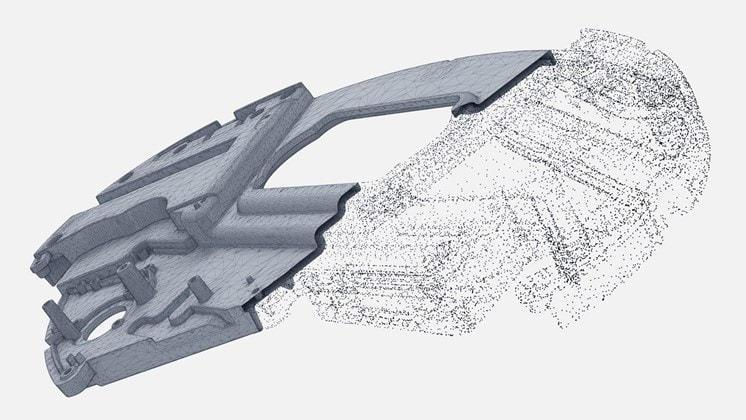

ZEISS INSPECT izračunava 3D mreže delova i komponenti direktno iz 3D oblaka tačaka. Ove mreže se koriste za vizualizaciju, simulaciju, reverzni inženjering i nominalno-stvarno poređenje. Takođe su pogodne za virtuelnu montažu koristeći podatke iz različitih izvora, i mogu se sačuvati u standardnim formatima kao što su STL, G3D, JT Open, ASCII ili PLY. Mreže se takođe mogu izvesti u STL formatu, što ih čini idealnim za aplikacije kao što je 3D štampa.
![Uređivanje mreže]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,746,420.file/zeiss_mesh-editing.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,746,420.file/zeiss_mesh-editing.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_mesh-editing.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_mesh-editing.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_mesh-editing.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_mesh-editing.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/mesh-editing/zeiss_mesh-editing.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_mesh-editing.jpg"} "Uređivanje mreže")
Uređivanje mreže

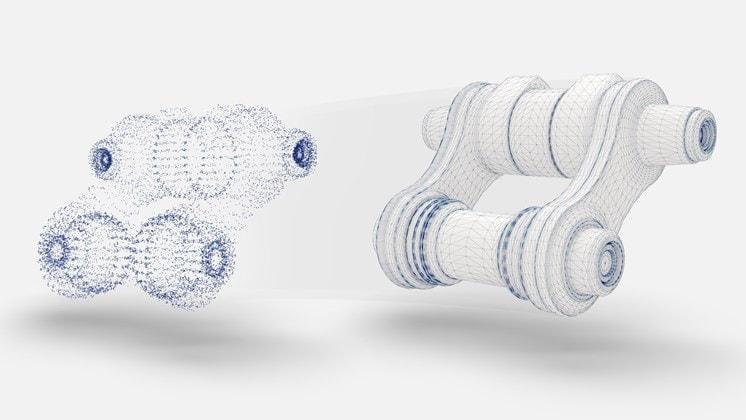

Kreirane mreže mogu se modifikovati pomoću funkcija za smanjivanje šuma, razređivanje ili povećanje preciznosti, popunjavanje praznina ili ekstrakciju linija zakrivljenosti. ZEISS INSPECT prikazuje status obrade u prozoru pregleda. Pored toga, optimalna mreža se može utvrditi identifikovanjem najkvalitetnije mreže ili izračunavanjem prosečne vrednosti mreže. Nakon uređivanja mreže možete uvesti CAD fajlove i započeti 3D inspekciju.
