Sateliti i naseljene svemirske letelice
Optimizovana 3D metrologija za pojedinačne svemirske letelice i serijski proizvedene satelite

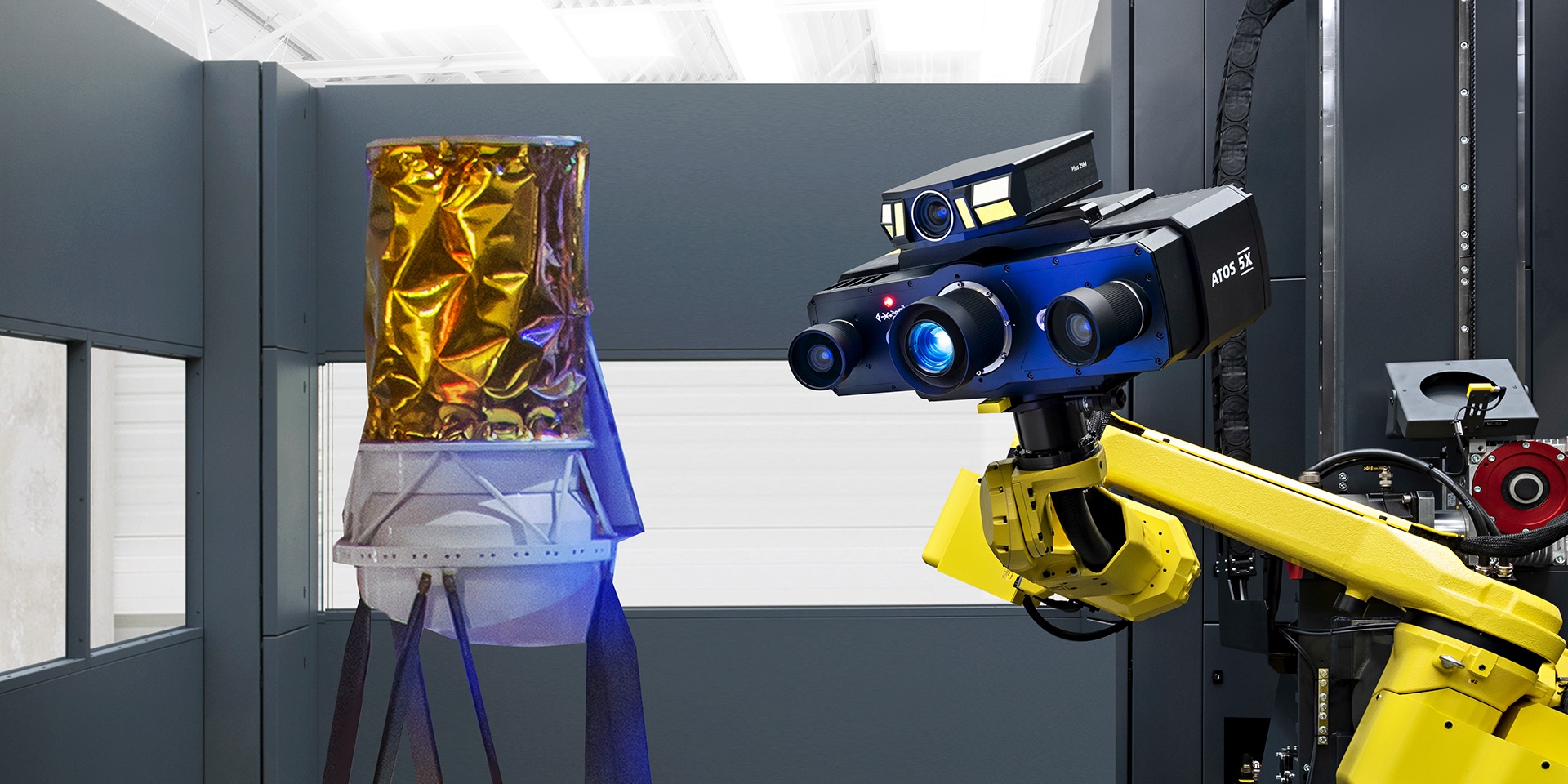

Sateliti i naseljene svemirske letelice, bilo da su orbitalni ili suborbitalni, tradicionalno se proizvode kao unikatni primerci ili u ograničenim serijama. ZEISS ATOS proizvodi, sa svojim sposobnostima generisanja preciznih digitalnih blizanaca, idealno su prilagođeni za proizvodnju u malim serijama, kratkim proizvodnim ciklusima i montažu unikatnih svemirskih letelica. Digitalizovana inspekcija i snimanje u proizvodnji jedinstvenih satelita i svemirskih letelica omogućavaju veću ponovljivost i brzu adaptaciju na veće obime proizvodnje. Digitalno udvajanje i precizna 3D inspekcija ne samo da olakšavaju aditivnu proizvodnju složenih delova i neophodnih malih ili pojedinačnih setova, već i garantuju njihov kvalitet.
![Optimizovana 3D metrologija za pojedinačne svemirske letelice i serijski proizvedene satelite]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original.image_file.100.50.file/zeiss_satellites-scanbox-atos5x_1920x960.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original.image_file.360.180.file/zeiss_satellites-scanbox-atos5x_1920x960.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original.image_file.768.384.file/zeiss_satellites-scanbox-atos5x_1920x960.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original.image_file.1024.512.file/zeiss_satellites-scanbox-atos5x_1920x960.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original.image_file.1280.640.file/zeiss_satellites-scanbox-atos5x_1920x960.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original.image_file.1440.720.file/zeiss_satellites-scanbox-atos5x_1920x960.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox-atos5x_1920x960.jpg/_jcr_content/renditions/original./zeiss_satellites-scanbox-atos5x_1920x960.jpg"} "Optimizovana 3D metrologija za pojedinačne svemirske letelice i serijski proizvedene satelite")
![Stvaranje jedinstvene digitalne kopije svake letelice]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_satellites-digital-copy.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_satellites-digital-copy.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_satellites-digital-copy.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_satellites-digital-copy.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_satellites-digital-copy.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_satellites-digital-copy.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-digital-copy.jpg/_jcr_content/renditions/original./zeiss_satellites-digital-copy.jpg"} "Stvaranje jedinstvene digitalne kopije svake letelice")
Stvaranje jedinstvene digitalne kopije svake svemirske letelice
Komponente satelita se proizvode sa uskim tolerancijama, ali ručna montaža dovodi do manjih odstupanja u svakom sklopljenom podsistemu i kompletnoj svemirskoj letelici. 3D optička metrologija proverava tolerancije i stvara digitalni model svake pojedinačne svemirske letelice za naknadnu analizu nakon lansiranja u slučaju kvara, kao i za poređenje sa budućim konstrukcijama i evolucijom proizvoda.
![Preciznost i doslednost u proizvodnji]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_satellites-accuracy.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_satellites-accuracy.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_satellites-accuracy.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_satellites-accuracy.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_satellites-accuracy.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_satellites-accuracy.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-accuracy.jpg/_jcr_content/renditions/original./zeiss_satellites-accuracy.jpg"} "Preciznost i doslednost u proizvodnji")
Preciznost i doslednost u proizvodnji
Moderni, manji sateliti se proizvode za dugotrajne proizvodne serije. Za postizanje konzistentnosti, dijagnostiku kvarova i evaluaciju proizvoda, neophodna su precizna koordinatna merenja, u kontekstu zamene starih materijala novim u proizvodnji komponenti. U ovako zahtevnim uslovima, tradicionalne kontaktne koordinatne merne mašine (KMM) ne mogu da pruže podršku za brze i sveobuhvatne planove merenja složenih sklopova poput satelita, niti da generišu kompletan oblak tačaka strukture za buduću ponovnu analizu.
Rešenje
Serija ATOS ScanBox je savršeno prilagođena ovom zadatku, kombinujući precizna KMM merenja sa detaljnim mapiranjem površina struktura visoke rezolucije. Sveobuhvatno testiranje komponenti i kompletnih satelita i naseljenih svemirskih letelica od ključnog je značaja tokom faza istraživanja i razvoja (R&D) i pred lansiranja. ARAMIS 3D sistem za praćenje predstavlja neophodan alat u savremenim R&D laboratorijama, nudeći optičko rešenje za bezkontaktno praćenje. sposoban da vrši merenje preciznih 3D pomeranja i izračunavanje lokalnog naprezanja materijala, za analizu kvarova i validaciju metoda konačnih elemenata (FEA).
![ATOS ScanBox 7 Series + ATOS 5X]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_satellites-scanbox7-atos5x.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_satellites-scanbox7-atos5x.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_satellites-scanbox7-atos5x.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_satellites-scanbox7-atos5x.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_satellites-scanbox7-atos5x.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_satellites-scanbox7-atos5x.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox7-atos5x.jpg/_jcr_content/renditions/original./zeiss_satellites-scanbox7-atos5x.jpg"} "ATOS ScanBox 7 Series + ATOS 5X")

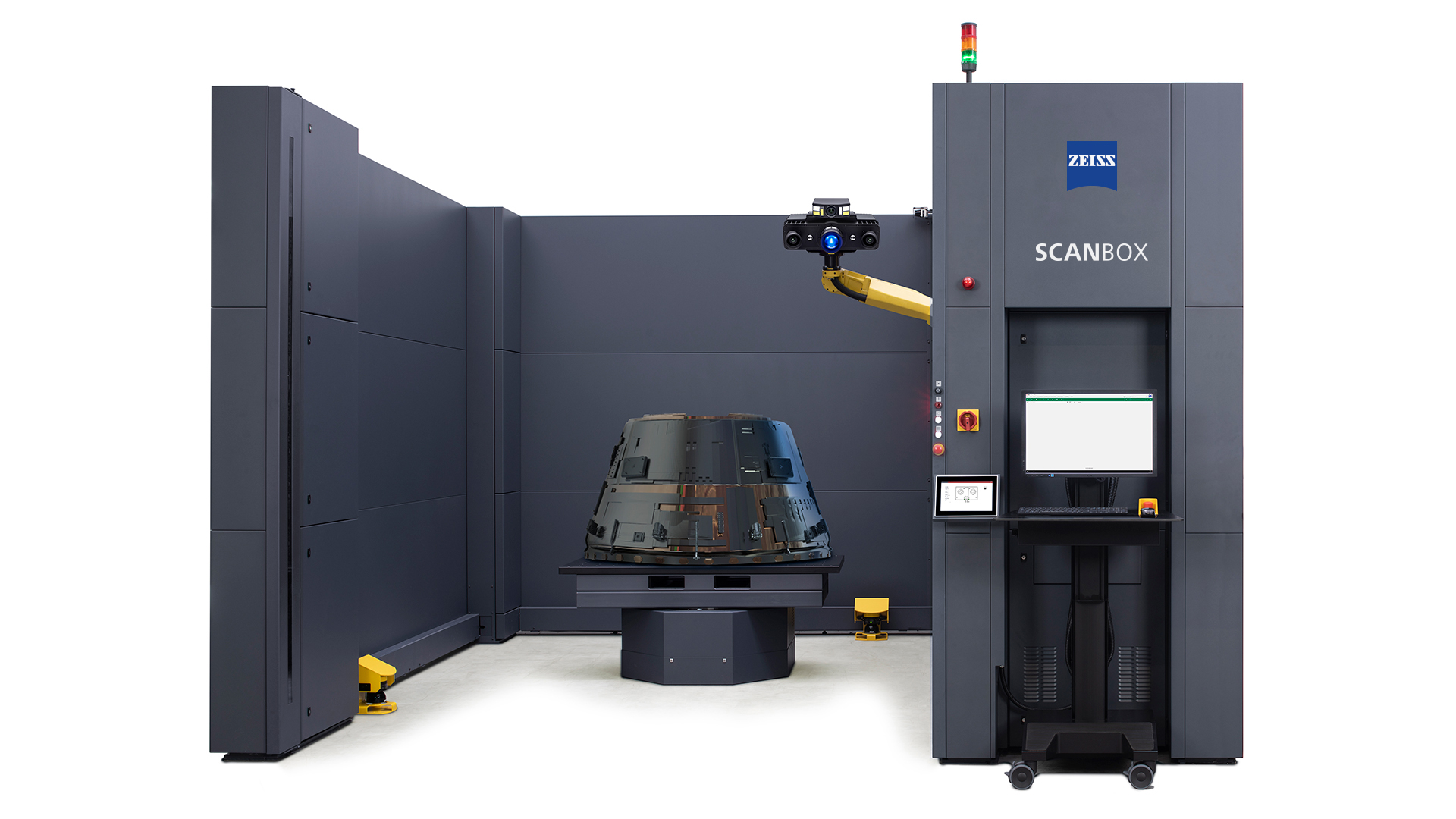

ATOS ScanBox Series 6 + ATOS 5
ATOS ScanBox Series 6 opremljena snažnim ATOS 5 senzorom, predstavlja efikasno i precizno rešenje za merenje velikih aero struktura. Ovaj automatizovani sistem za metrologiju vrši sveobuhvatna analitička merenja velikih delova (do 3,5 m), dok ATOS 5 senzor vizualizuje skrivene greške zahvaljujući brzom prikupljanju visoko preciznih podataka.
Kinematički dizajn ATOS ScanBox 6 Series omogućava izuzetnu fleksibilnost u pozicioniranju ATOS 5 senzora, zahvaljujući 7 stepeni slobode kretanja. ATOS 5 senzor ima snažan ugrađeni izvor svetlosti koji omogućava prikupljanje visoko preciznih podataka za samo 0,2 sekunde po skeniranju, sa brzinom od 100 frejmova u sekundi. Zahvaljujući vodećim senzorskim kamerama i tehnologiji projekcije, ATOS 5 zahteva manji broj pojedinačnih skeniranja, čime se ubrzava celokupan proces merenja.
Pouzdano rešenje za testiranje, pretvaranje podataka u profitabilne uvide

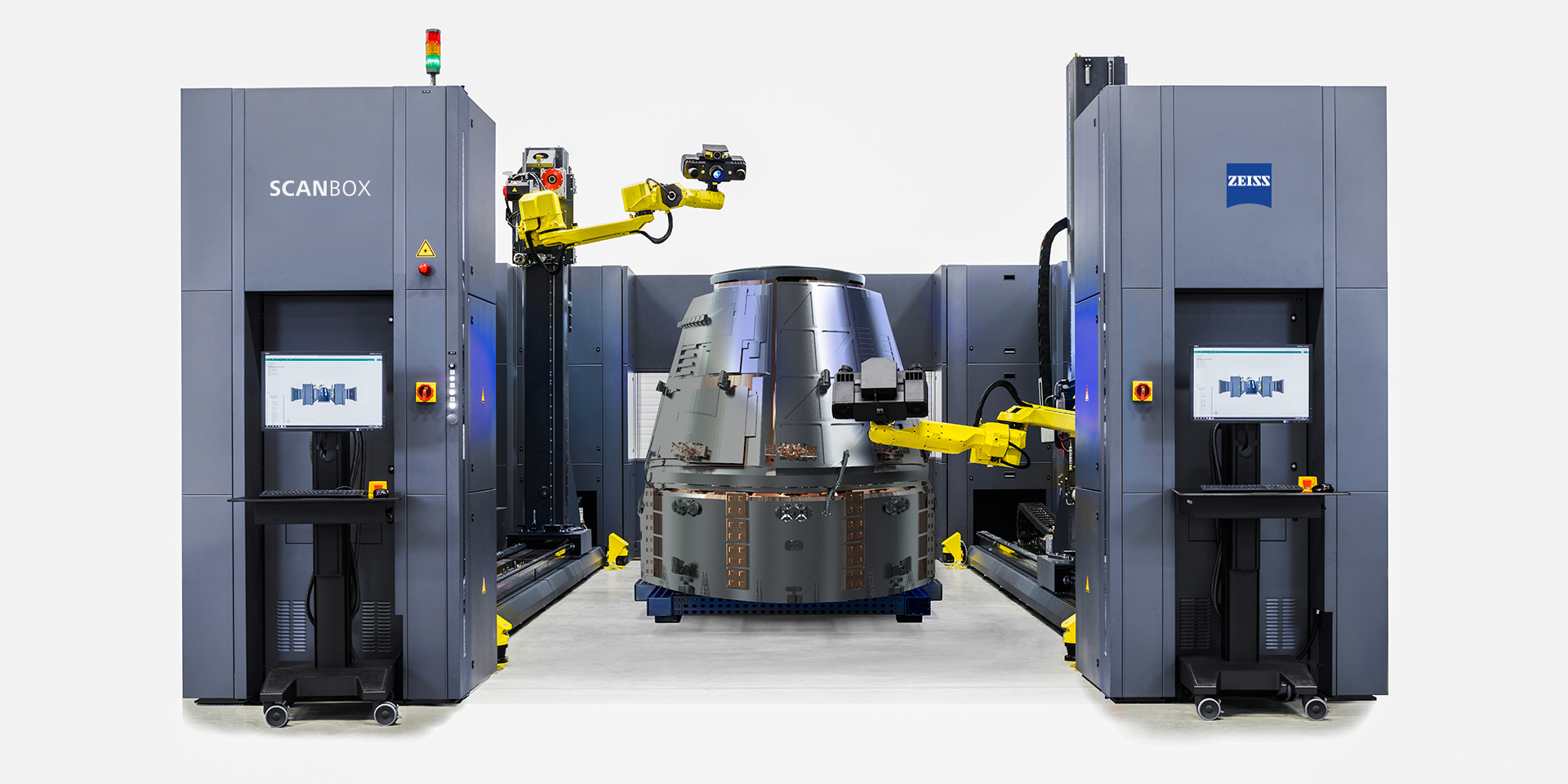

![ATOS ScanBox Serija 8]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original.image_file.100.50.file/zeiss_satellites-scanbox8160_1920x960.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original.image_file.360.180.file/zeiss_satellites-scanbox8160_1920x960.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original.image_file.768.384.file/zeiss_satellites-scanbox8160_1920x960.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original.image_file.1024.512.file/zeiss_satellites-scanbox8160_1920x960.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original.image_file.1280.640.file/zeiss_satellites-scanbox8160_1920x960.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original.image_file.1440.720.file/zeiss_satellites-scanbox8160_1920x960.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_satellites-scanbox8160_1920x960.jpg/_jcr_content/renditions/original./zeiss_satellites-scanbox8160_1920x960.jpg"} "ATOS ScanBox Serija 8")
![ZEISS Correlate za svemirska rešenja]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.100.56.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.360.203.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.768.432.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.1024.576.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.1280.720.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.1440.810.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/aerospace/space/satellites-and-inhabited-spacecraft/zeiss_space-zeiss-correlate.jpg/_jcr_content/renditions/original.image_file.1796.1010.66,20,1862,1031.file/zeiss_space-zeiss-correlate.jpg"} "ZEISS Correlate za svemirska rešenja")

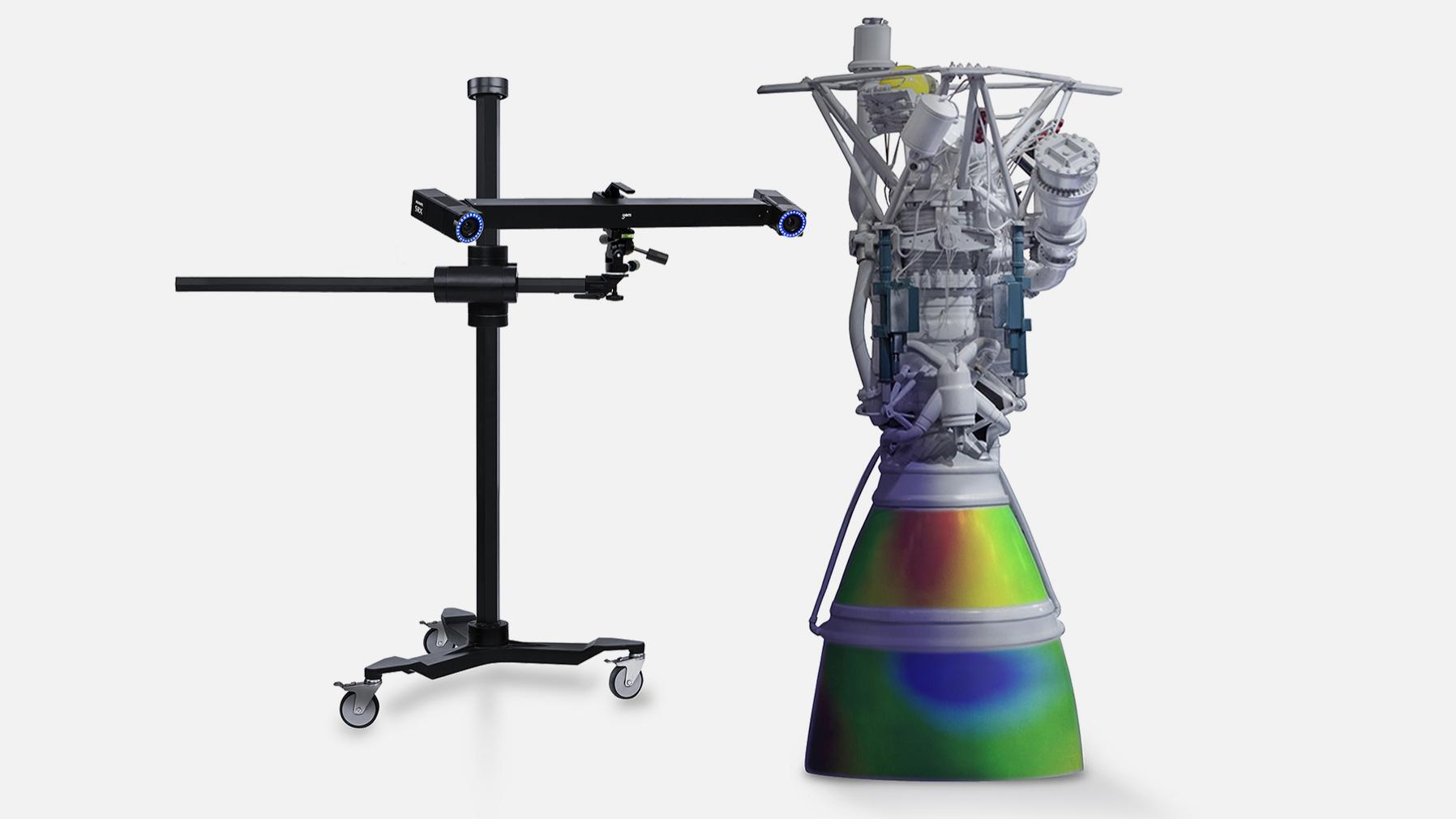

ARAMIS hardver i softver
ARAMIS je ZEISS-ova nadogradnja od mernih traka i senzora za pomeranje, stereoskopski 3D optički senzor koji omogućava merenje 3D deformacija i pomeranja. ZEISS-ov softverski paket omogućava brzu analizu test podataka za jednostavnu validaciju strukturnih simulacija, što dovodi do ubrzanog procesa sa manje testnih ponavljanja. Rezultati omogućavaju korisnicima da pregledaju i unaprede parametre simulacije, kao i da optimizuju trenutne i buduće procese dizajna. Na taj način, moguće je smanjiti broj skupih testnih postupaka i ubrzati proces razvoja proizvoda. Istovremeno, rezultati pružaju uvid u sigurnosne rizike, trajnost delova, kao i u procese puzanja i starenja materijala. Ovo ne samo da povećava bezbednost, već i produžava vek trajanja proizvoda.
