Pozicioniranje, otkrivanje defekata i digitalizacija
Od svih komponenti u najnovijoj generaciji električnih motora, stator nudi najveći potencijal za unapređenje performansi, snage i efikasnosti e-motora. Uvođenjem novih sirovina i inovativnih tehnologija proizvodnje, neophodno je osigurati kvalitet u svim koracima proizvodnje statora, kako bi se garantovala bezbednost, pouzdanost i performanse e-motora.
![Izolacioni papir i položaj bakarne ukosnice]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.100.75.0,75,600,525.file/03-e-motor-application-line-600px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.360.270.0,75,600,525.file/03-e-motor-application-line-600px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg"} "Izolacioni papir i položaj bakarne ukosnice")

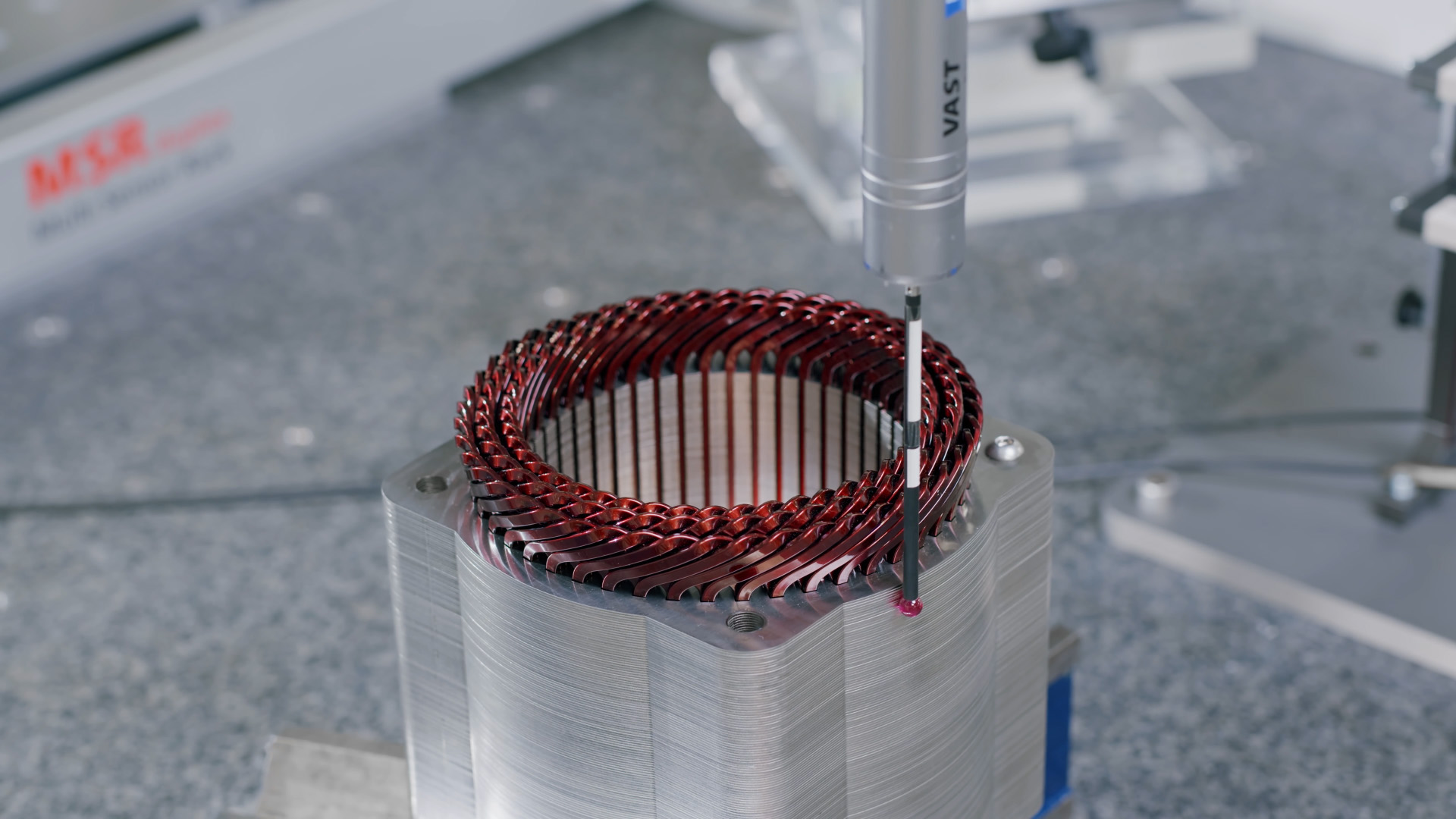

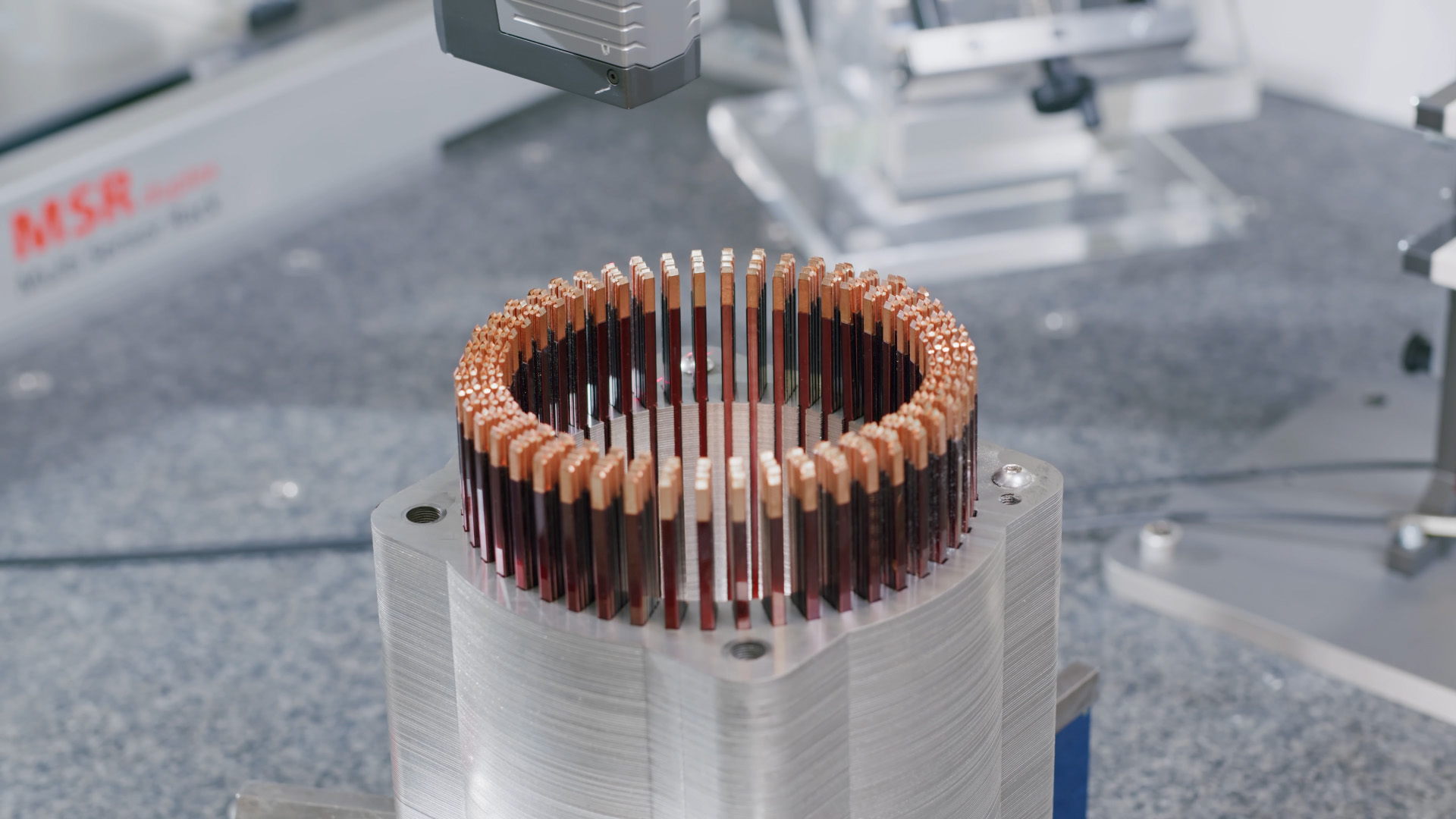

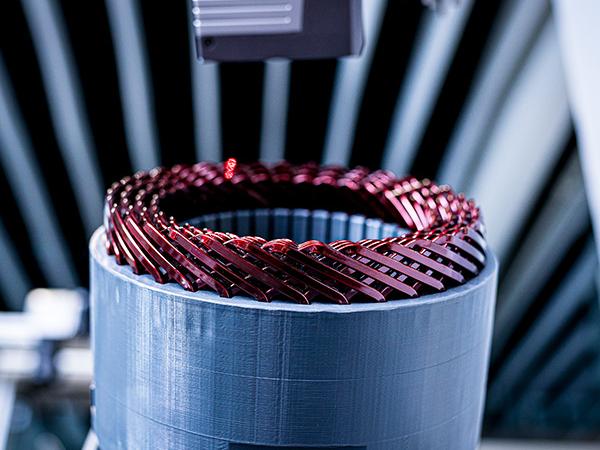

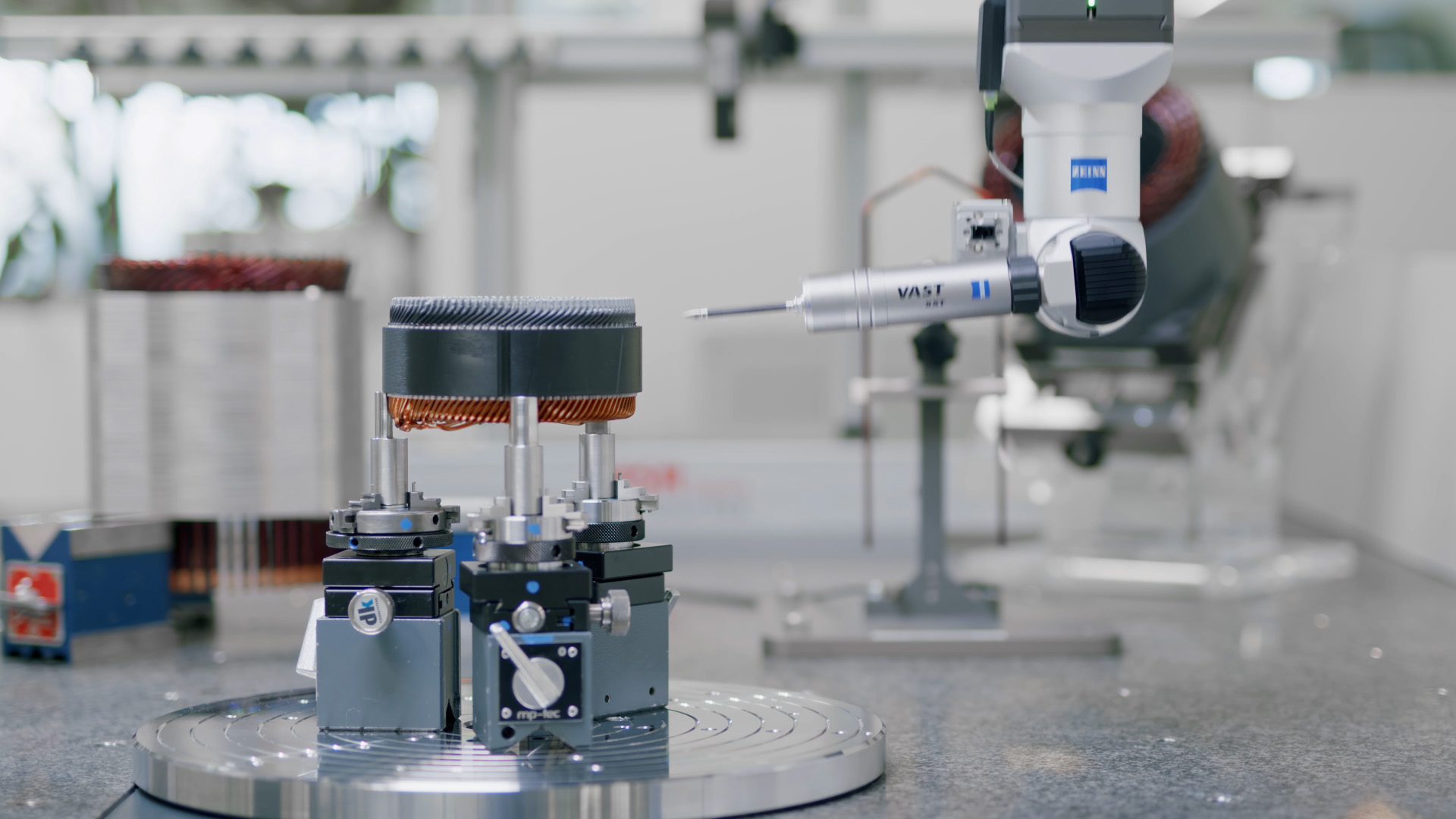

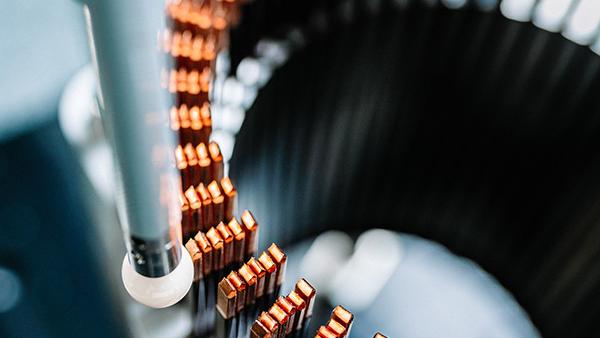

Tokom montaže statora, izolacioni papir i bakarne ukosnice se ubacuju u žlebove laminiranog jezgra i zatim spajaju zavarivanjem. Takođe se zavaruju i priključne tačke električnog napajanja. Potrebno je pregledati više karakteristika, kako bi se izbegli kratki spojevi statora. Fleksibilne bakarne ukosnice zahtevaju kontaktne i optičke tehnologije koje omogućavaju precizno ispitivanje pozicija i dimenzija – za šta je ZEISS multi senzor koordinatna merna mašina (KMM) savršeno rešenje.
![Inspekcija zapremine sklopa]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.100.56.0,131,600,469.file/05-assembly-inspection-600px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.360.203.0,131,600,469.file/05-assembly-inspection-600px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg"} "Inspekcija zapremine sklopa")

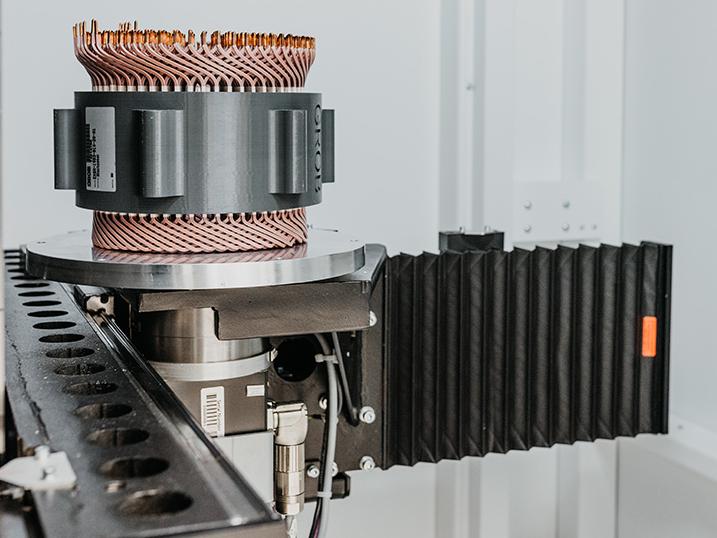

Ako spoljne dimenzije statora premašuju raspoloživi prostor za instalaciju unutar kućišta elektromotora, montaža e-motora neće biti moguća. ZEISS koordinatne merne mašine (KMM) opremljene MASS tehnologijom omogućavaju automatsko prebacivanje između različitih tipova senzora. Kombinacija triangulacionih laserskih senzora i kontaktnih sistema sa mernim vrhovima omogućava potpunu kontrolu kvaliteta unapred sastavljenog statora.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/10-emot-sw-mesh-600px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/10-emot-sw-mesh-600px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg"})

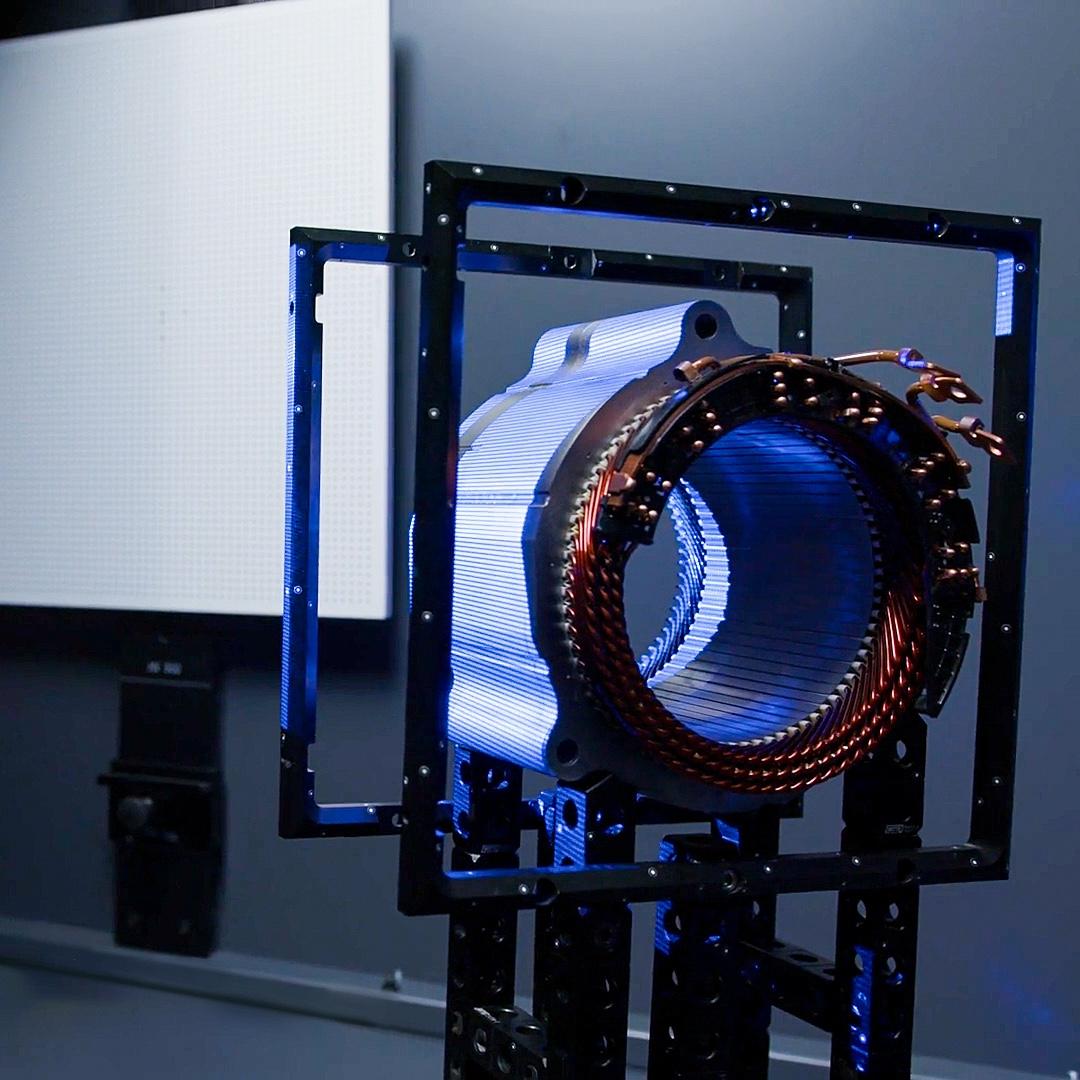

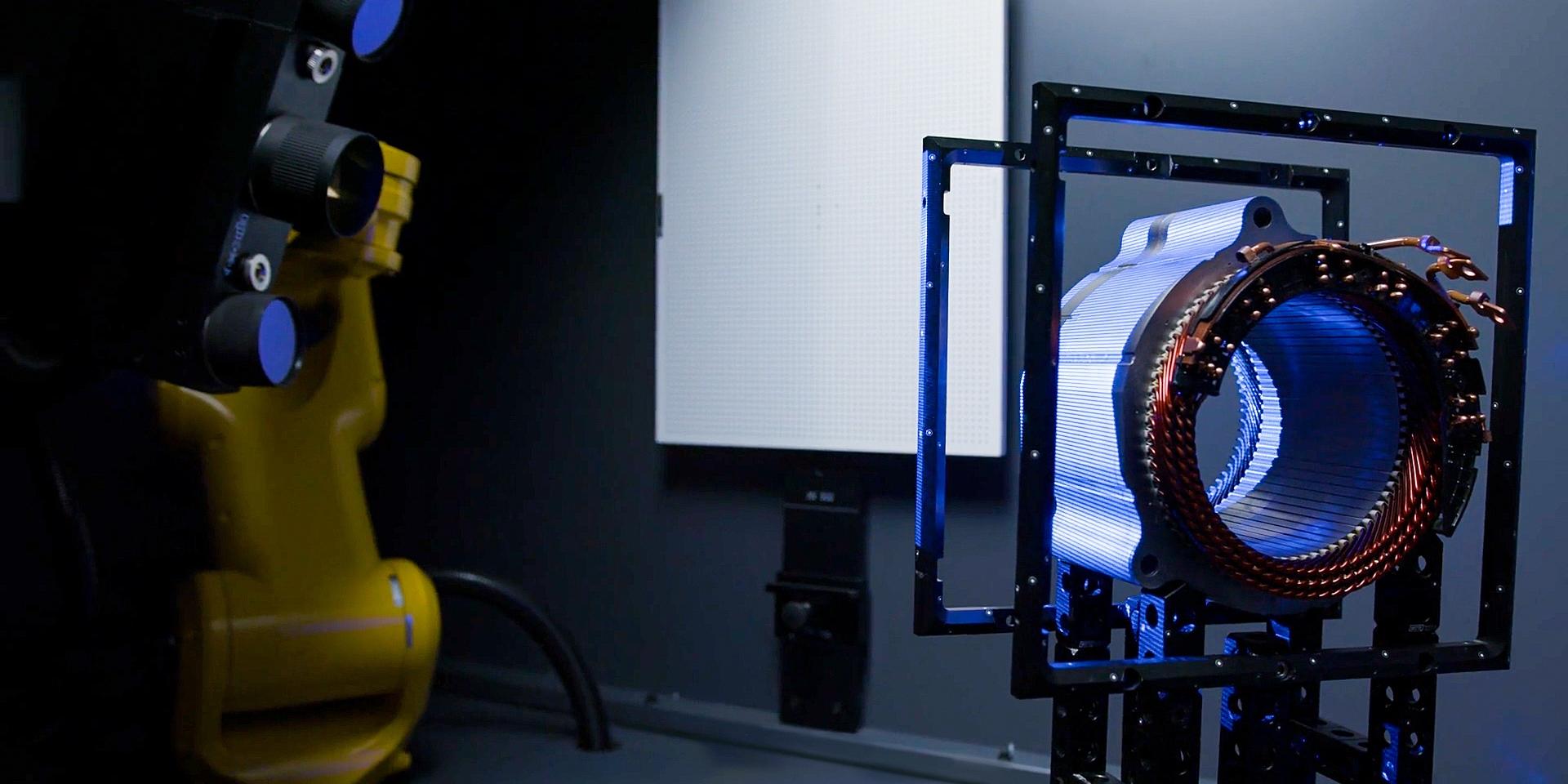

ZEISS ScanBox za eMotore je specifično razvijen za automatizovano skeniranje i digitalizaciju cele površine pojedinačnih bakarnih ukosnica, grupa ukosnica, kao i kompletnih statora.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/12-zeiss-emotor-600px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/12-zeiss-emotor-600px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg"})

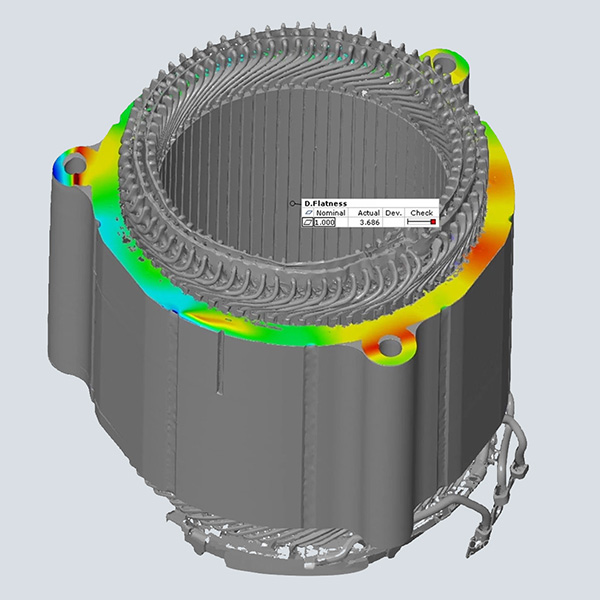

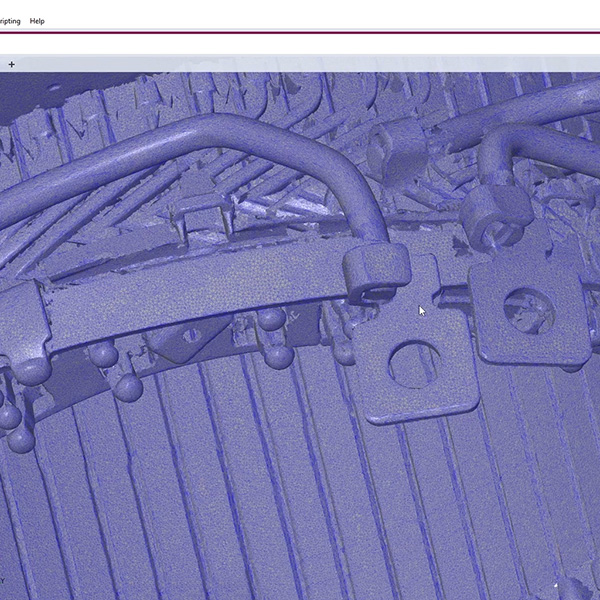

U softveru se na osnovu 3D koordinata distribuiranih unutar širokog prostornog opsega generiše kompletan geometrijski digitalni duplikat. Ovim se omogućava brza i pouzdana identifikacija odstupanja i defekata u geometriji komponenti u odnosu na CAD model.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/13-emotor-software-teaser-600px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/13-emotor-software-teaser-600px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg"})

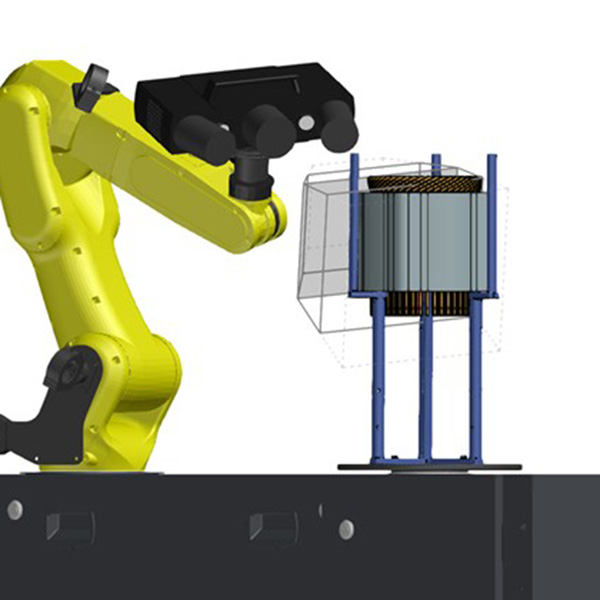

Virtualna merna soba (VMR) se otvara u ZEISS Quality Suite softveru. Pored funkcionalne slike stvarnog ZEISS ScanBox sistema za e-motore, sadržana je i programska podrška za robota, uključujući kinematiku robotskih putanja.
![]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/15-e-motors-software-600px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/15-e-motors-software-600px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg"})

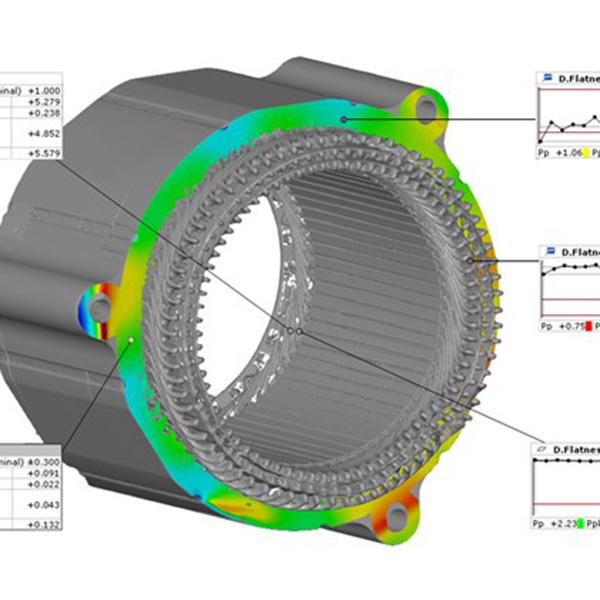

Primenom automatske analize trendova, odstupanja u odnosu na idealni model mogu biti detektovana već u ranoj fazi. Konstantno merenje osigurava brzo otkrivanje promena koje proizlaze iz prethodnih proizvodnih koraka: Iz ovih podataka se mogu utvrditi potrebna prilagođavanja koja mogu biti primenjena u ranim fazama proizvodnje.
![Kontrola kvaliteta statora]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.100.33.5,0,1921,639.file/header-motor-stator-1920x640px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.360.120.5,0,1921,639.file/header-motor-stator-1920x640px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.768.256.5,0,1921,639.file/header-motor-stator-1920x640px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.1024.341.5,0,1921,639.file/header-motor-stator-1920x640px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.1280.427.5,0,1921,639.file/header-motor-stator-1920x640px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.1440.480.5,0,1921,639.file/header-motor-stator-1920x640px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/header-motor-stator-1920x640px.jpg/_jcr_content/renditions/original.image_file.1916.639.5,0,1921,639.file/header-motor-stator-1920x640px.jpg"} "Kontrola kvaliteta statora")
![Instalacija statora]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.100.75.2,229,719,767.file/07-application-image-768.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.360.270.2,229,719,767.file/07-application-image-768.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.717.538.2,229,719,767.file/07-application-image-768.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.717.538.2,229,719,767.file/07-application-image-768.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.717.538.2,229,719,767.file/07-application-image-768.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.717.538.2,229,719,767.file/07-application-image-768.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/07-application-image-768.jpg/_jcr_content/renditions/original.image_file.717.538.2,229,719,767.file/07-application-image-768.jpg"} "Instalacija statora")

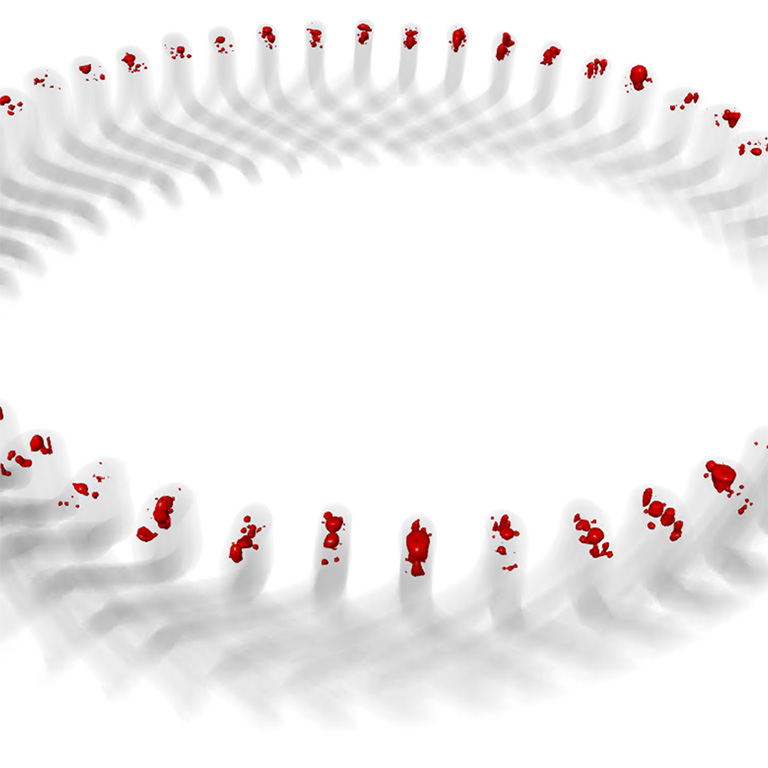

![Identifikacija pora i defekata]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original.image_file.100.100.file/08-defection-stator_768x768px.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original.image_file.360.360.file/08-defection-stator_768x768px.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original./08-defection-stator_768x768px.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original./08-defection-stator_768x768px.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original./08-defection-stator_768x768px.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original./08-defection-stator_768x768px.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/08-defection-stator_768x768px.jpg/_jcr_content/renditions/original./08-defection-stator_768x768px.jpg"} "Identifikacija pora i defekata")
