Uvoz iz CAD-a u ZEISS INSPECT
Otvaranje CAD datotekaDizajner oživljava deo uz pomoć CAD modela. Umesto 2D crteža, deo je definisan 3D modelom. Ali, CAD modeli ne služe samo za dizajn i izradu prototipova ili komponenti, već i za planiranje optimizovanih proizvodnih procesa. ZEISS INSPECT pojednostavljuje upotrebu CAD datoteka zahvaljujući svojoj funkciji uvoza.
![Pregled osnovnih formata za uvoz CAD modela]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_cad-import-basic-formats.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_cad-import-basic-formats.jpg"} "Osnovni formati za uvoz CAD modela")

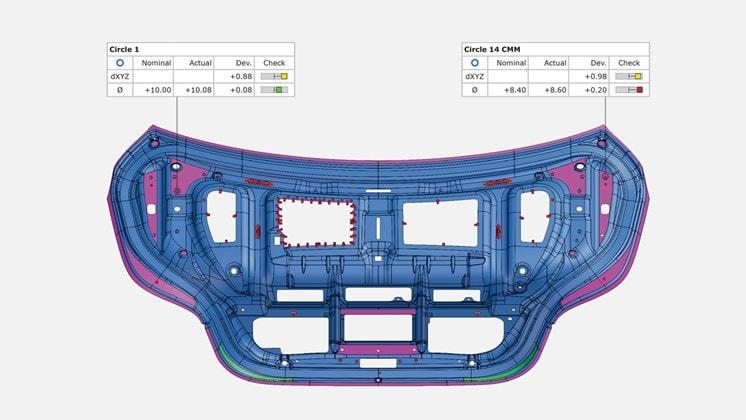

Osnovni formati za uvoz CAD modela
ZEISS INSPECT uvozi neutralne formate kao što su IGES, JT Open i STEP. Pojedinačni formati podataka se uvoze drag & drop funkcijom, a softver ih automatski prepoznaje i klasifikuje.
Više mogućnosti sa pro licencom ZEISS INSPECT
![Ilustracija CAD modela]({"xsmall":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg","small":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg","medium":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg","large":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg","xlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg","xxlarge":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg","max":"https://www.zeiss.rs/content/dam/iqs/r/software/zeiss-inspect/cad-import/zeiss_inspect-features_cad-import-professional-module.jpg/_jcr_content/renditions/original.image_file.746.420.0,0,746,420.file/zeiss_inspect-features_cad-import-professional-module.jpg"} "CAD")

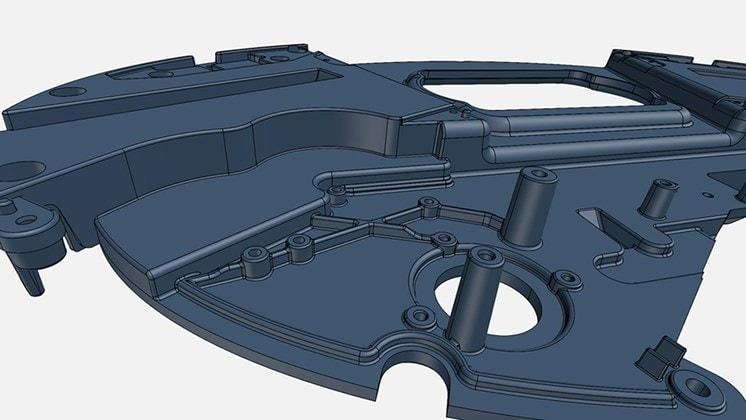

Još više CAD modela
Pored standardnih CAD formata, ZEISS INSPECT Pro licenca omogućava uvoz izvornih CAD formata kao što su CATIA, NX, SolidWorks i Pro/ENGINEER. Ovo eliminiše potrebu za konverzijom podataka, što povećava efikasnost rada.
U okviru koncepata kao što je PLM (upravljanje životnim ciklusom proizvoda), relevantne procesne i proizvodne informacije se beleže kao PMI (informacije o proizvodu i proizvodnji), radi celovitog upravljanja i kontrole proizvodnih lanaca na nivou cele kompanije. ZEISS podržava interfejse za digitalni prenos podataka o inspekcijskim karakteristikama. Karakteristike kvaliteta i referentni sistemi, integrisani u CAD modele putem semantičkog dizajna, mogu biti digitalno preneti i kontekstualno analizirani. Kreiranjem plana inspekcije direktno pri uvozu CAD modela, eliminiše se potreba za dodatnim, složenim programiranjem.
